IXGN82N120C3H1

In Stock: 3,763

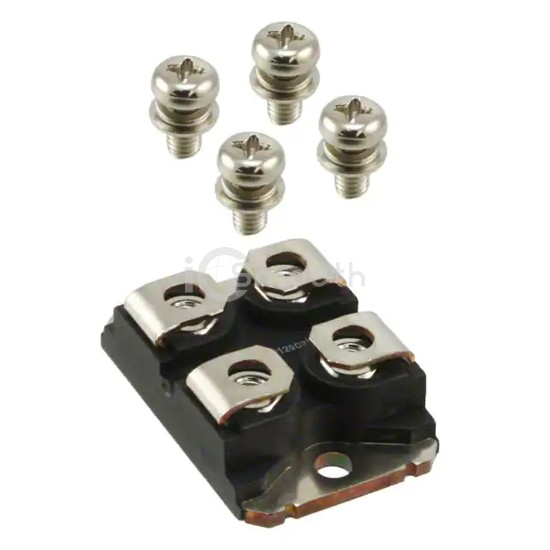

IXGN82N120C3H1 - IXYS - Transistors - IGBTs - Modules
REF: IXGN82N120C3H1 IXYS
IXGN82N120C3H1

IXYS

IGBT MOD 1200V 130A 595W SOT227B

IXGN82N120C3H1 is a Transistors - IGBTs - Modules manufactured by IXYS. IGBT MOD 1200V 130A 595W SOT227B. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-227-4, miniBLOC, current - collector (ic) (max) 130 A.

Datasheet Request a Quote

In Stock: 3,763

Specifications

15 parameters
Product StatusActive
IGBT TypePT
ConfigurationSingle
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)130 A
Power - Max595 W
Vce(on) (Max) @ Vge, Ic3.9V @ 15V, 82A
Current - Collector Cutoff (Max)50 µA
Input Capacitance (Cies) @ Vce7.9 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseSOT-227-4, miniBLOC
Supplier Device PackageSOT-227B
