IXGN60N60C2D1

In Stock: 2,498

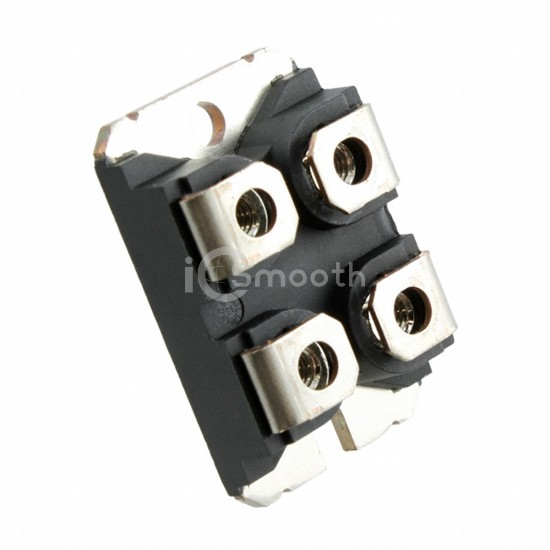

IXGN60N60C2D1 - IXYS - Transistors - IGBTs - Modules
REF: IXGN60N60C2D1 IXYS
IXGN60N60C2D1

IXYS

IGBT MOD 600V 75A 480W SOT227B

IXGN60N60C2D1 is a Transistors - IGBTs - Modules manufactured by IXYS. IGBT MOD 600V 75A 480W SOT227B. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-227-4, miniBLOC, current - collector (ic) (max) 75 A.

Datasheet Request a Quote

In Stock: 2,498

Specifications

15 parameters
Product StatusObsolete
IGBT TypePT
ConfigurationSingle
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)75 A
Power - Max480 W
Vce(on) (Max) @ Vge, Ic2.5V @ 15V, 50A
Current - Collector Cutoff (Max)650 µA
Input Capacitance (Cies) @ Vce4.75 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseSOT-227-4, miniBLOC
Supplier Device PackageSOT-227B
