IXGN320N60A3

In Stock: 5,827

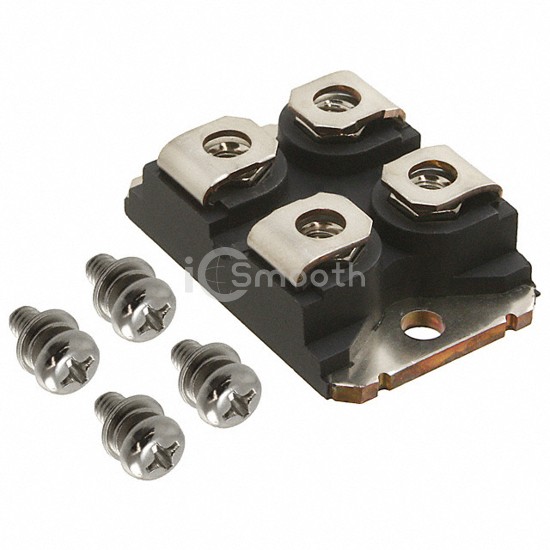

IXGN320N60A3 - IXYS - Transistors - IGBTs - Modules
REF: IXGN320N60A3 IXYS
IXGN320N60A3

IXYS

IGBT MOD 600V 320A 735W SOT227B

IXGN320N60A3 is a Transistors - IGBTs - Modules manufactured by IXYS. IGBT MOD 600V 320A 735W SOT227B. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-227-4, miniBLOC, current - collector (ic) (max) 320 A.

Datasheet Request a Quote

In Stock: 5,827

Specifications

15 parameters
Product StatusActive
IGBT TypePT
ConfigurationSingle
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)320 A
Power - Max735 W
Vce(on) (Max) @ Vge, Ic1.25V @ 15V, 100A
Current - Collector Cutoff (Max)150 µA
Input Capacitance (Cies) @ Vce18 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseSOT-227-4, miniBLOC
Supplier Device PackageSOT-227B
