IXGN200N60B

In Stock: 2,474

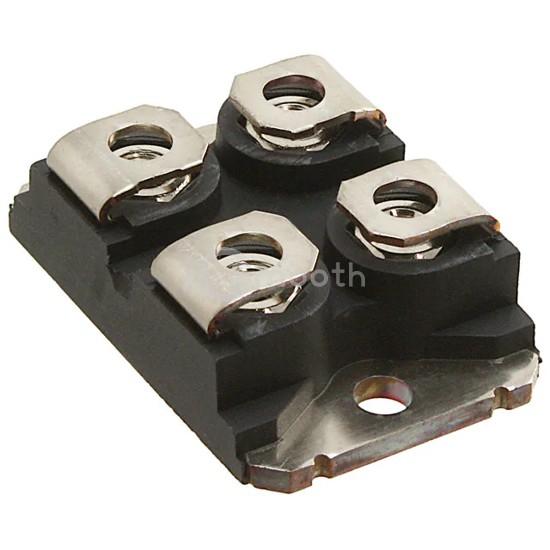

IXGN200N60B - IXYS - Transistors - IGBTs - Modules
REF: IXGN200N60B IXYS
IXGN200N60B

IXYS

IGBT MOD 600V 200A 600W SOT227B

IXGN200N60B is a Transistors - IGBTs - Modules manufactured by IXYS. IGBT MOD 600V 200A 600W SOT227B. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-227-4, miniBLOC, current - collector (ic) (max) 200 A.

Datasheet Request a Quote

In Stock: 2,474

Specifications

15 parameters
Product StatusObsolete
IGBT TypePT
ConfigurationSingle
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)200 A
Power - Max600 W
Vce(on) (Max) @ Vge, Ic2.1V @ 15V, 120A
Current - Collector Cutoff (Max)200 µA
Input Capacitance (Cies) @ Vce11 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseSOT-227-4, miniBLOC
Supplier Device PackageSOT-227B
