IXDN75N120

In Stock: 405

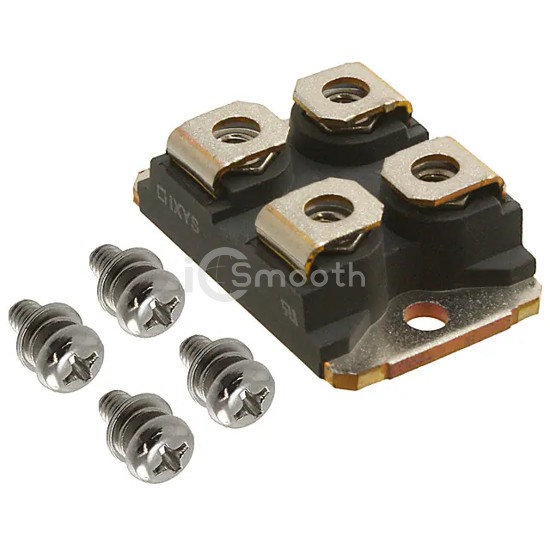

IXDN75N120 - IXYS - Transistors - IGBTs - Modules
REF: IXDN75N120 IXYS
IXDN75N120

IXYS

IGBT MOD 1200V 150A 660W SOT227B

IXDN75N120 is a Transistors - IGBTs - Modules manufactured by IXYS. IGBT MOD 1200V 150A 660W SOT227B. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case SOT-227-4, miniBLOC, current - collector (ic) (max) 150 A.

Datasheet Request a Quote

In Stock: 405

Specifications

15 parameters
Product StatusActive
IGBT TypeNPT
ConfigurationSingle
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)150 A
Power - Max660 W
Vce(on) (Max) @ Vge, Ic2.7V @ 15V, 75A
Current - Collector Cutoff (Max)4 mA
Input Capacitance (Cies) @ Vce5.5 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseSOT-227-4, miniBLOC
Supplier Device PackageSOT-227B
