IXDN502D1T/R

In Stock: 4,006

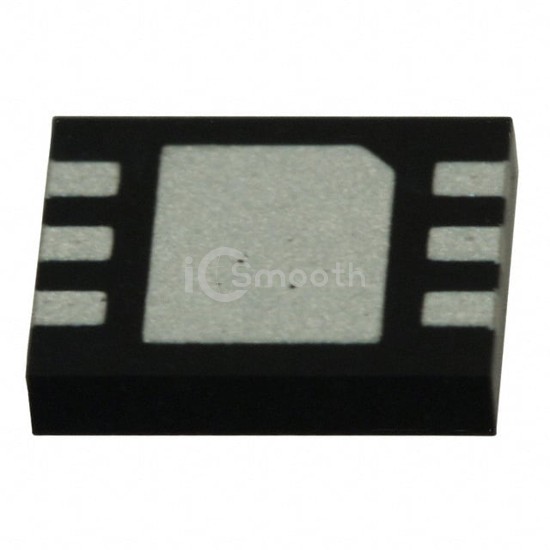

IXDN502D1T/R - IXYS - PMIC - Gate Drivers
REF: IXDN502D1T/R IXYS
IXDN502D1T/R

IXYS

IC GATE DRVR LOW-SIDE 6DFN

IXDN502D1T/R is a PMIC - Gate Drivers manufactured by IXYS. IC GATE DRVR LOW-SIDE 6DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), voltage - supply 4.5V ~ 30V, package / case 6-VDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 4,006

Tiered Pricing USD
2,500+ $0.7227 —
5,000+ $0.6959 -4%
12,500+ $0.6691 -7% BEST

Specifications

15 parameters
Product StatusObsolete
Driven ConfigurationLow-Side
Channel TypeIndependent
Number of Drivers2
Gate TypeIGBT, N-Channel, P-Channel MOSFET
Voltage - Supply4.5V ~ 30V
Logic Voltage - VIL, VIH0.8V, 3V
Current - Peak Output (Source, Sink)2A, 2A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)7.5ns, 6.5ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-VDFN Exposed Pad
Supplier Device Package6-DFN (4x5)
