Name: FII40-06D
Brand: IXYS
SKU: FII40-06D
Availability: InStock

REF: FII40-06D IXYS

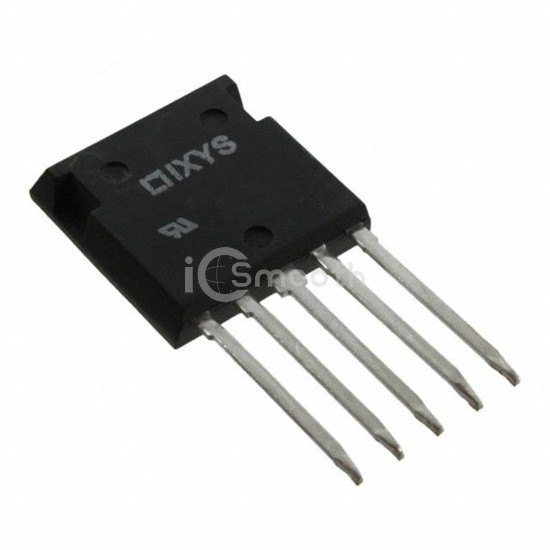

FII40-06D

IGBT H BRIDGE 600V 40A I4PAK5

FII40-06D is a Transistors - IGBTs - Arrays manufactured by IXYS. IGBT H BRIDGE 600V 40A I4PAK5. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case i4-Pac™-5, current - collector (ic) (max) 40 A.

Datasheet Request a Quote

In Stock: 2,345

Specifications

15 parameters

Product Status	Obsolete
IGBT Type	NPT
Configuration	Half Bridge
Voltage - Collector Emitter Breakdown (Max)	600 V
Current - Collector (Ic) (Max)	40 A
Power - Max	125 W
Vce(on) (Max) @ Vge, Ic	2.2V @ 15V, 25A
Current - Collector Cutoff (Max)	600 µA

Input Capacitance (Cies) @ Vce	1.6 nF @ 25 V
Input	Standard
NTC Thermistor	No
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	i4-Pac™-5
Supplier Device Package	ISOPLUS i4-PAC™
