Name: CS8-12IO2
Brand: IXYS
SKU: CS8-12IO2
Price: 7.87 USD
Availability: InStock

REF: CS8-12IO2 IXYS

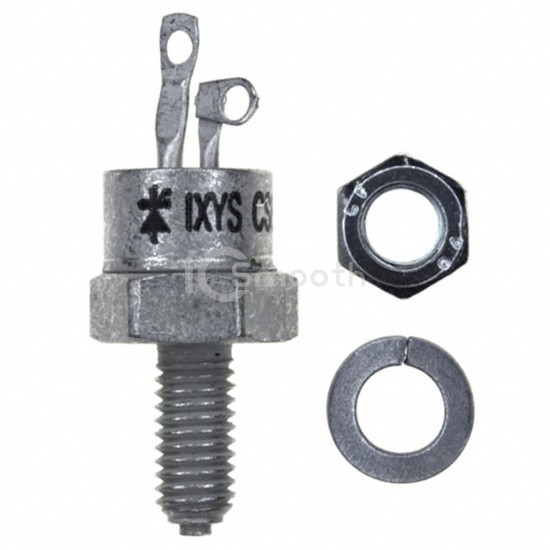

CS8-12IO2

SCR 1.2KV 25A TO64

CS8-12IO2 is a Thyristors - SCRs manufactured by IXYS. SCR 1.2KV 25A TO64. Key specifications: mounting type Chassis, Stud Mount, operating temperature -40°C ~ 125°C, package / case TO-208AB, TO-64-3, Stud.

Datasheet Request a Quote

In Stock: 9,109

Specifications

15 parameters

Product Status	Obsolete
Voltage - Off State	1.2 kV
Voltage - Gate Trigger (Vgt) (Max)	2.5 V
Current - Gate Trigger (Igt) (Max)	30 mA
Voltage - On State (Vtm) (Max)	1.6 V
Current - On State (It (AV)) (Max)	16 A
Current - On State (It (RMS)) (Max)	25 A
Current - Hold (Ih) (Max)	80 mA

Current - Off State (Max)	3 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	250A, 270A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C
Mounting Type	Chassis, Stud Mount
Package / Case	TO-208AB, TO-64-3, Stud
Supplier Device Package	TO-64
