Name: CS35-12IO4
Brand: IXYS
SKU: CS35-12IO4
Price: 26.82 USD
Availability: InStock

REF: CS35-12IO4 IXYS

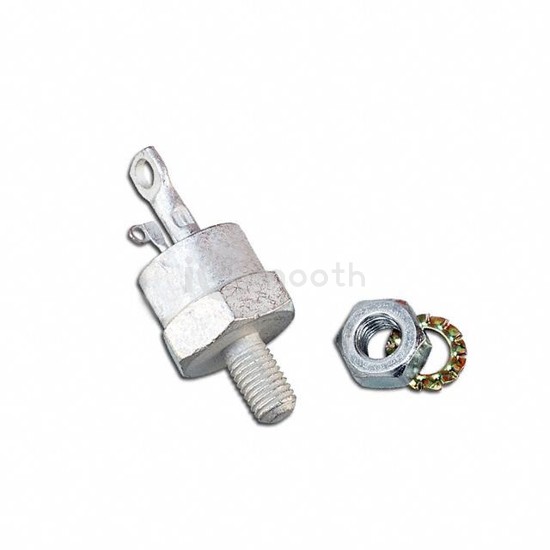

CS35-12IO4

SCR 1.2KV 120A TO208AC

CS35-12IO4 is a Thyristors - SCRs manufactured by IXYS. SCR 1.2KV 120A TO208AC. Key specifications: mounting type Chassis, Stud Mount, operating temperature -40°C ~ 125°C, package / case TO-208AC, TO-65-3, Stud.

Datasheet Request a Quote

In Stock: 5,035

Specifications

15 parameters

Product Status	Obsolete
Voltage - Off State	1.2 kV
Voltage - Gate Trigger (Vgt) (Max)	1.5 V
Current - Gate Trigger (Igt) (Max)	100 mA
Voltage - On State (Vtm) (Max)	1.5 V
Current - On State (It (AV)) (Max)	69 A
Current - On State (It (RMS)) (Max)	120 A
Current - Hold (Ih) (Max)	80 mA

Current - Off State (Max)	10 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	1200A, 1340A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C
Mounting Type	Chassis, Stud Mount
Package / Case	TO-208AC, TO-65-3, Stud
Supplier Device Package	TO-208AC (TO-65)
