Name: CS23-12IO2
Brand: IXYS
SKU: CS23-12IO2
Price: 16.93 USD
Availability: InStock

REF: CS23-12IO2 IXYS

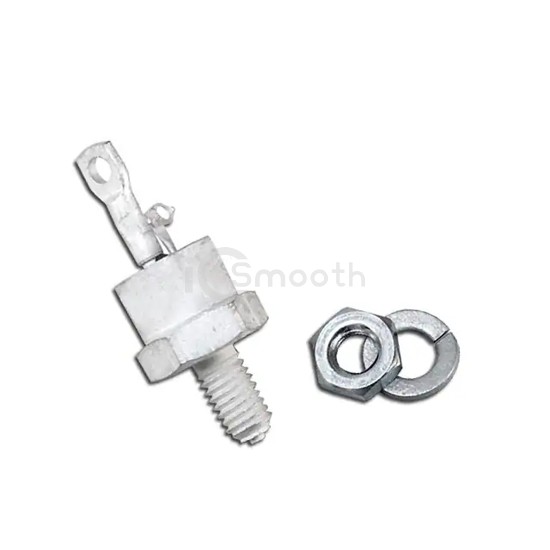

CS23-12IO2

SCR 1.2KV 50A TO208AA

CS23-12IO2 is a Thyristors - SCRs manufactured by IXYS. SCR 1.2KV 50A TO208AA. Key specifications: mounting type Chassis, Stud Mount, operating temperature -40°C ~ 125°C, package / case TO-208AA, TO-48-3, Stud.

Datasheet Request a Quote

In Stock: 6,274

Specifications

15 parameters

Product Status	Obsolete
Voltage - Off State	1.2 kV
Voltage - Gate Trigger (Vgt) (Max)	2.5 V
Current - Gate Trigger (Igt) (Max)	50 mA
Voltage - On State (Vtm) (Max)	1.8 V
Current - On State (It (AV)) (Max)	32 A
Current - On State (It (RMS)) (Max)	50 A
Current - Hold (Ih) (Max)	100 mA

Current - Off State (Max)	3 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	450A, 480A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C
Mounting Type	Chassis, Stud Mount
Package / Case	TO-208AA, TO-48-3, Stud
Supplier Device Package	TO-208AA (TO-48)
