Name: CS20-22MOF1
Brand: IXYS
SKU: CS20-22MOF1
Price: 41.86 USD
Availability: InStock

REF: CS20-22MOF1 IXYS

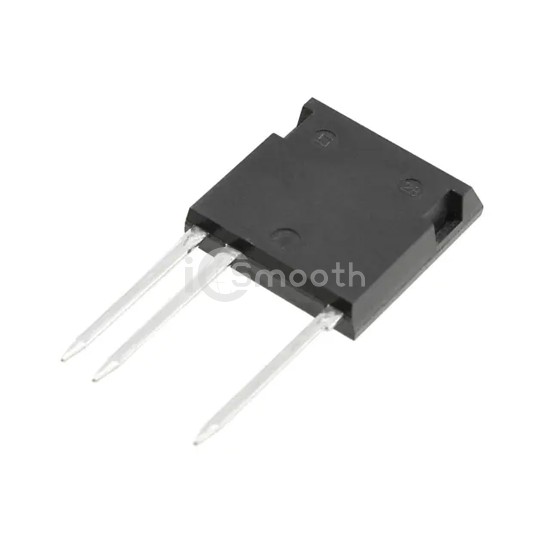

CS20-22MOF1

SCR 2.2KV I4-PAC

CS20-22MOF1 is a Thyristors - SCRs manufactured by IXYS. SCR 2.2KV I4-PAC. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case i4-Pac™-5 (3 Leads).

Datasheet Request a Quote

In Stock: 8,299

Tiered Pricing USD

1+ $41.8600 —

25+ $28.6328 -32% BEST

Specifications

15 parameters

Product Status	Active
Voltage - Off State	2.2 kV
Voltage - Gate Trigger (Vgt) (Max)	2.3 V
Current - Gate Trigger (Igt) (Max)	250 mA
Voltage - On State (Vtm) (Max)	1.5 V
Current - On State (It (AV)) (Max)	18 A
Current - On State (It (RMS)) (Max)	-
Current - Hold (Ih) (Max)	150 mA

Current - Off State (Max)	50 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	200A @ 50Hz
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole
Package / Case	i4-Pac™-5 (3 Leads)
Supplier Device Package	ISOPLUS i4-PAC™
