Name: CMA50E1600HB
Brand: IXYS
SKU: CMA50E1600HB
Price: 7.75 USD
Availability: InStock

REF: CMA50E1600HB IXYS

CMA50E1600HB

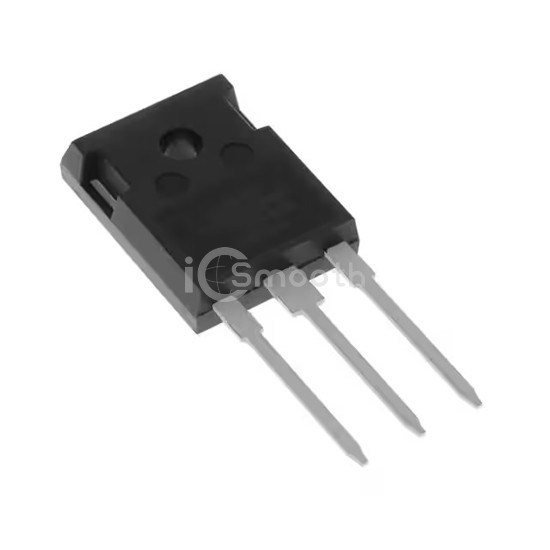

SCR 1.6KV 79A TO247

CMA50E1600HB is a Thyristors - SCRs manufactured by IXYS. SCR 1.6KV 79A TO247. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case TO-247-3.

Datasheet Request a Quote

In Stock: 4,127

Tiered Pricing USD

1+ $7.7500 —

30+ $4.4850 -42%

120+ $3.7686 -51%

510+ $3.2844 -58% BEST

Specifications

15 parameters

Product Status	Active
Voltage - Off State	1.6 kV
Voltage - Gate Trigger (Vgt) (Max)	1.5 V
Current - Gate Trigger (Igt) (Max)	50 mA
Voltage - On State (Vtm) (Max)	1.3 V
Current - On State (It (AV)) (Max)	50 A
Current - On State (It (RMS)) (Max)	79 A
Current - Hold (Ih) (Max)	100 mA

Current - Off State (Max)	-
Current - Non Rep. Surge 50, 60Hz (Itsm)	550A, 595A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-247-3
Supplier Device Package	TO-247 (IXTH)
