Name: CLA100E1200TZ-TUB
Brand: IXYS
SKU: CLA100E1200TZ-TUB
Price: 7.62 USD
Availability: InStock

REF: CLA100E1200TZ-TUB IXYS

CLA100E1200TZ-TUB

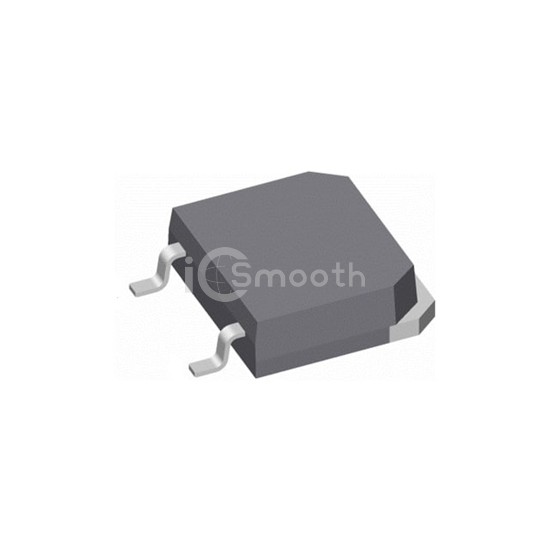

THYRISTOR SCR 1200V 100A TO268AA

CLA100E1200TZ-TUB is a Thyristors - SCRs manufactured by IXYS. THYRISTOR SCR 1200V 100A TO268AA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case TO-268-3, D³Pak (2 Leads + Tab), TO-268AA.

Datasheet Request a Quote

In Stock: 3,468

Specifications

15 parameters

Product Status	Active
Voltage - Off State	1200 V
Voltage - Gate Trigger (Vgt) (Max)	1.5 V
Current - Gate Trigger (Igt) (Max)	40 mA
Voltage - On State (Vtm) (Max)	-
Current - On State (It (AV)) (Max)	100 A
Current - On State (It (RMS)) (Max)	160 A
Current - Hold (Ih) (Max)	100 mA

Current - Off State (Max)	-
Current - Non Rep. Surge 50, 60Hz (Itsm)	-
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
Supplier Device Package	TO-268AA (D3Pak-HV)
