Name: LF2388BTR
Brand: IXYS Integrated Circuits Division
SKU: LF2388BTR
Price: 2.54 USD
Availability: InStock

REF: LF2388BTR IXYS Integrated Circuits Division

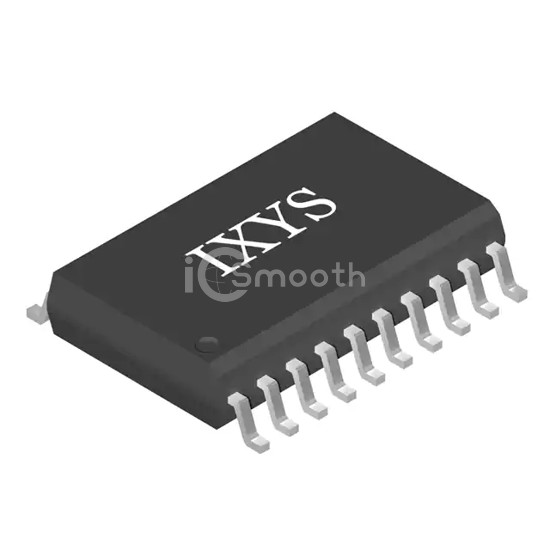

LF2388BTR

IXYS Integrated Circuits Division

GATE DRIVER HALF BRIDGE 3P 0.27A

LF2388BTR is a PMIC - Gate Drivers manufactured by IXYS Integrated Circuits Division. GATE DRIVER HALF BRIDGE 3P 0.27A. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 10V ~ 20V, package / case 20-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 7,862

Tiered Pricing USD

1+ $2.5400 —

10+ $1.8930 -25%

25+ $1.7296 -32%

100+ $1.5505 -39%

250+ $1.4652 -42%

500+ $1.4137 -44% BEST

Specifications

15 parameters

Product Status	Active
Driven Configuration	Half-Bridge
Channel Type	3-Phase
Number of Drivers	6
Gate Type	IGBT, N-Channel MOSFET
Voltage - Supply	10V ~ 20V
Logic Voltage - VIL, VIH	0.8V, 2.4V
Current - Peak Output (Source, Sink)	420mA, 750mA

Input Type	Inverting
High Side Voltage - Max (Bootstrap)	600 V
Rise / Fall Time (Typ)	45ns, 25ns
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	20-SOIC (0.295", 7.50mm Width)
Supplier Device Package	20-SOIC
