Name: LF2304NTR
Brand: IXYS Integrated Circuits Division
SKU: LF2304NTR
Price: 1.22 USD
Availability: InStock

REF: LF2304NTR IXYS Integrated Circuits Division

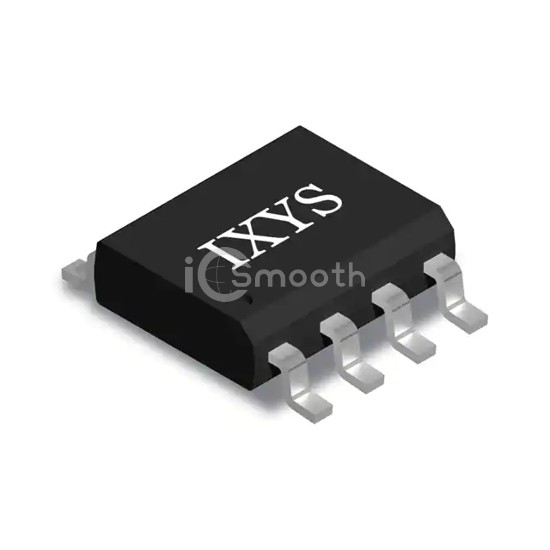

LF2304NTR

IXYS Integrated Circuits Division

GATE DRIVER HALF BRIDGE 0.06A

LF2304NTR is a PMIC - Gate Drivers manufactured by IXYS Integrated Circuits Division. GATE DRIVER HALF BRIDGE 0.06A. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 10V ~ 20V, package / case 8-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 6,035

Tiered Pricing USD

1+ $1.2200 —

10+ $0.8830 -28%

25+ $0.7988 -35%

100+ $0.7064 -42%

250+ $0.6624 -46%

500+ $0.6358 -48%

1,000+ $0.6140 -50% BEST

Specifications

15 parameters

Product Status	Active
Driven Configuration	Half-Bridge
Channel Type	Independent
Number of Drivers	2
Gate Type	IGBT, N-Channel MOSFET
Voltage - Supply	10V ~ 20V
Logic Voltage - VIL, VIH	0.7V, 2.3V
Current - Peak Output (Source, Sink)	290mA, 600mA

Input Type	Inverting
High Side Voltage - Max (Bootstrap)	600 V
Rise / Fall Time (Typ)	35ns, 35ns
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOIC
