Name: LF21904NTR
Brand: IXYS Integrated Circuits Division
SKU: LF21904NTR
Price: 2.23 USD
Availability: InStock

REF: LF21904NTR IXYS Integrated Circuits Division

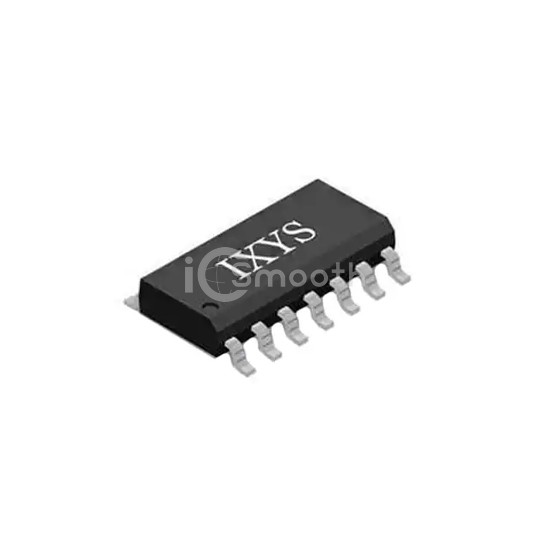

LF21904NTR

IXYS Integrated Circuits Division

GATE DRIVER HIGH/LOW SIDE 3.5A

LF21904NTR is a PMIC - Gate Drivers manufactured by IXYS Integrated Circuits Division. GATE DRIVER HIGH/LOW SIDE 3.5A. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 10V ~ 20V, package / case 14-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 2,171

Tiered Pricing USD

1+ $2.2300 —

10+ $1.6510 -26%

25+ $1.5060 -32%

100+ $1.3468 -40%

250+ $1.2709 -43%

500+ $1.2252 -45%

1,000+ $1.1876 -47% BEST

Specifications

15 parameters

Product Status	Active
Driven Configuration	Half-Bridge
Channel Type	Independent
Number of Drivers	2
Gate Type	IGBT, N-Channel MOSFET
Voltage - Supply	10V ~ 20V
Logic Voltage - VIL, VIH	0.8V, 2.5V
Current - Peak Output (Source, Sink)	4.5A, 4.5A

Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	600 V
Rise / Fall Time (Typ)	25ns, 20ns
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	14-SOIC (0.154", 3.90mm Width)
Supplier Device Package	14-SOIC
