Name: LF2184NTR
Brand: IXYS Integrated Circuits Division
SKU: LF2184NTR
Price: 2.28 USD
Availability: InStock

REF: LF2184NTR IXYS Integrated Circuits Division

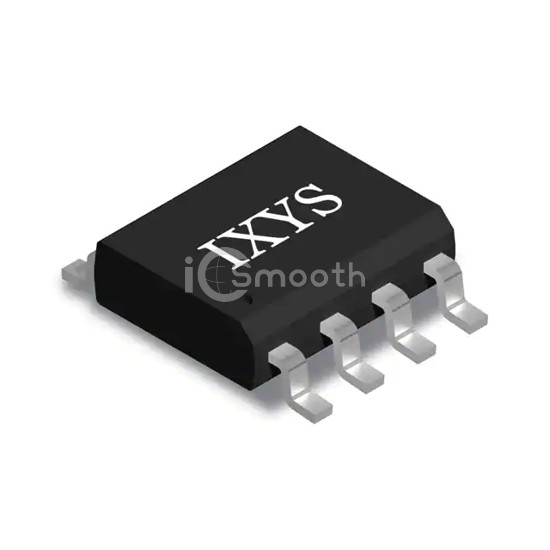

LF2184NTR

IXYS Integrated Circuits Division

GATE DRIVER HALF BRIDGE 1.4A

LF2184NTR is a PMIC - Gate Drivers manufactured by IXYS Integrated Circuits Division. GATE DRIVER HALF BRIDGE 1.4A. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 10V ~ 20V, package / case 8-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 3,701

Tiered Pricing USD

1+ $2.2800 —

10+ $1.6870 -26%

25+ $1.5396 -32%

100+ $1.3776 -40%

250+ $1.3003 -43%

500+ $1.2537 -45%

1,000+ $1.2153 -47% BEST

Specifications

15 parameters

Product Status	Active
Driven Configuration	Half-Bridge
Channel Type	Independent
Number of Drivers	2
Gate Type	IGBT, N-Channel MOSFET
Voltage - Supply	10V ~ 20V
Logic Voltage - VIL, VIH	0.8V, 2.5V
Current - Peak Output (Source, Sink)	1.9A, 2.3A

Input Type	Inverting
High Side Voltage - Max (Bootstrap)	600 V
Rise / Fall Time (Typ)	20ns, 40ns
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOIC
