Name: LF21814NTR
Brand: IXYS Integrated Circuits Division
SKU: LF21814NTR
Price: 1.84 USD
Availability: InStock

REF: LF21814NTR IXYS Integrated Circuits Division

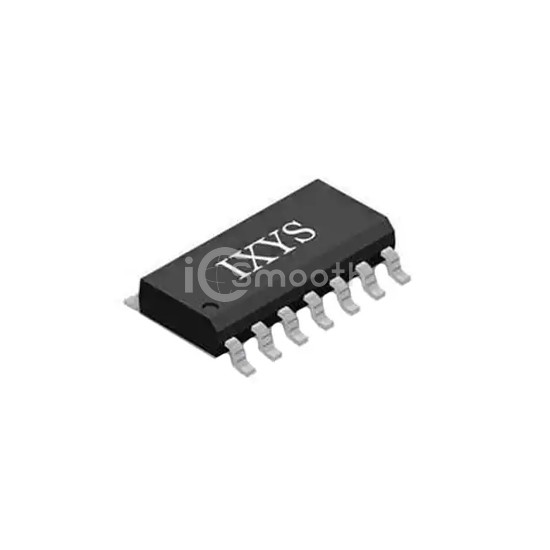

LF21814NTR

IXYS Integrated Circuits Division

GATE DRIVER HIGH/LOW SIDE 1.4A

LF21814NTR is a PMIC - Gate Drivers manufactured by IXYS Integrated Circuits Division. GATE DRIVER HIGH/LOW SIDE 1.4A. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 10V ~ 20V, package / case 14-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 6,224

Tiered Pricing USD

1+ $1.8400 —

10+ $1.3550 -26%

25+ $1.2332 -33%

100+ $1.0991 -40%

250+ $1.0352 -44%

500+ $0.9966 -46%

1,000+ $0.9649 -48% BEST

Specifications

15 parameters

Product Status	Active
Driven Configuration	Half-Bridge
Channel Type	Independent
Number of Drivers	2
Gate Type	IGBT, N-Channel MOSFET
Voltage - Supply	10V ~ 20V
Logic Voltage - VIL, VIH	0.8V, 2.5V
Current - Peak Output (Source, Sink)	1.9A, 2.3A

Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	600 V
Rise / Fall Time (Typ)	40ns, 20ns
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	14-SOIC (0.154", 3.90mm Width)
Supplier Device Package	14-SOIC
