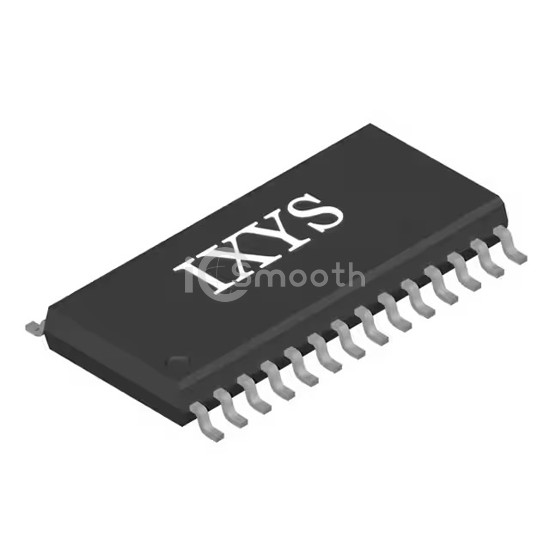

Name: LF2136BTR
Brand: IXYS Integrated Circuits Division
SKU: LF2136BTR
Price: 2.87 USD
Availability: InStock

REF: LF2136BTR IXYS Integrated Circuits Division

LF2136BTR

IXYS Integrated Circuits Division

GATE DRIVER HALF BRIDGE 3P 0.12A

LF2136BTR is a PMIC - Gate Drivers manufactured by IXYS Integrated Circuits Division. GATE DRIVER HALF BRIDGE 3P 0.12A. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), voltage - supply 10V ~ 20V, package / case 28-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 2,726

Tiered Pricing USD

1+ $2.8700 —

10+ $2.1410 -25%

25+ $1.9596 -32%

100+ $1.7605 -39%

250+ $1.6654 -42%

500+ $1.6082 -44% BEST

Specifications

15 parameters

Product Status	Active
Driven Configuration	Half-Bridge
Channel Type	3-Phase
Number of Drivers	3
Gate Type	IGBT, N-Channel MOSFET
Voltage - Supply	10V ~ 20V
Logic Voltage - VIL, VIH	0.8V, 2.4V
Current - Peak Output (Source, Sink)	200mA, 350mA

Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	600 V
Rise / Fall Time (Typ)	90ns, 35ns
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	28-SOIC (0.295", 7.50mm Width)
Supplier Device Package	28-SOIC
