LF2113BTR

In Stock: 9,683

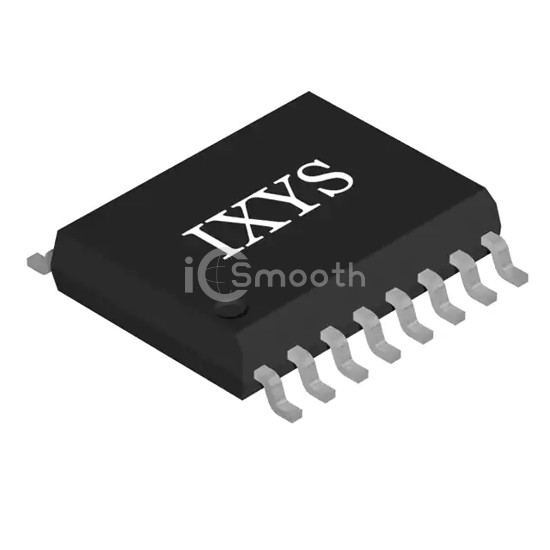

LF2113BTR - IXYS Integrated Circuits Division - PMIC - Gate Drivers
REF: LF2113BTR IXYS Integrated Circuits Division
LF2113BTR

IXYS Integrated Circuits Division

GATE DRIVER HIGH/LOW SIDE 2A

LF2113BTR is a PMIC - Gate Drivers manufactured by IXYS Integrated Circuits Division. GATE DRIVER HIGH/LOW SIDE 2A. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 10V ~ 20V, package / case 16-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 9,683

Tiered Pricing USD
1+ $2.5800 —
10+ $1.9240 -25%
25+ $1.7588 -32%
100+ $1.5772 -39%
250+ $1.4906 -42%
500+ $1.4383 -44% BEST

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHalf-Bridge
Channel TypeIndependent
Number of Drivers2
Gate TypeIGBT, N-Channel MOSFET
Voltage - Supply10V ~ 20V
Logic Voltage - VIL, VIH5V, 9.5V
Current - Peak Output (Source, Sink)2.5A, 2.5A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)600 V
Rise / Fall Time (Typ)15ns, 13ns
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case16-SOIC (0.295", 7.50mm Width)
Supplier Device Package16-SOIC
