Name: LF21064NTR
Brand: IXYS Integrated Circuits Division
SKU: LF21064NTR
Price: 1.43 USD
Availability: InStock

REF: LF21064NTR IXYS Integrated Circuits Division

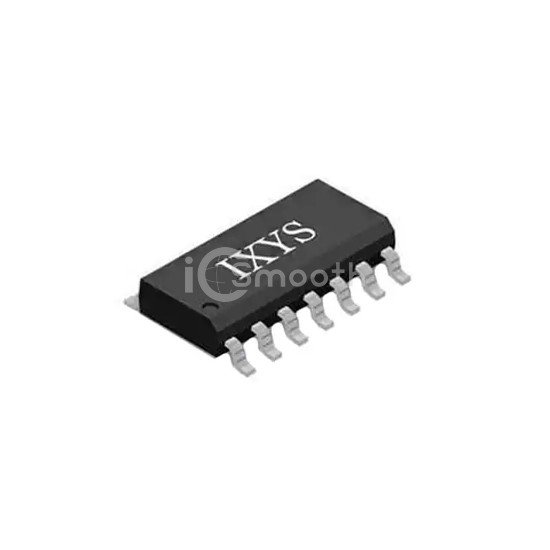

LF21064NTR

IXYS Integrated Circuits Division

GATE DRIVER HIGH/LOW SIDE 0.13A

LF21064NTR is a PMIC - Gate Drivers manufactured by IXYS Integrated Circuits Division. GATE DRIVER HIGH/LOW SIDE 0.13A. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 10V ~ 20V, package / case 14-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 9,909

Tiered Pricing USD

1+ $1.4300 —

10+ $1.0380 -27%

25+ $0.9416 -34%

100+ $0.8354 -42%

250+ $0.7846 -45%

500+ $0.7540 -47%

1,000+ $0.7289 -49% BEST

Specifications

15 parameters

Product Status	Active
Driven Configuration	Half-Bridge
Channel Type	Independent
Number of Drivers	2
Gate Type	IGBT, N-Channel MOSFET
Voltage - Supply	10V ~ 20V
Logic Voltage - VIL, VIH	0.6V, 2.5V
Current - Peak Output (Source, Sink)	290mA, 600mA

Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	600 V
Rise / Fall Time (Typ)	100ns, 25ns
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	14-SOIC (0.154", 3.90mm Width)
Supplier Device Package	14-SOIC
