Name: LF2104NTR
Brand: IXYS Integrated Circuits Division
SKU: LF2104NTR
Price: 1.17 USD
Availability: InStock

REF: LF2104NTR IXYS Integrated Circuits Division

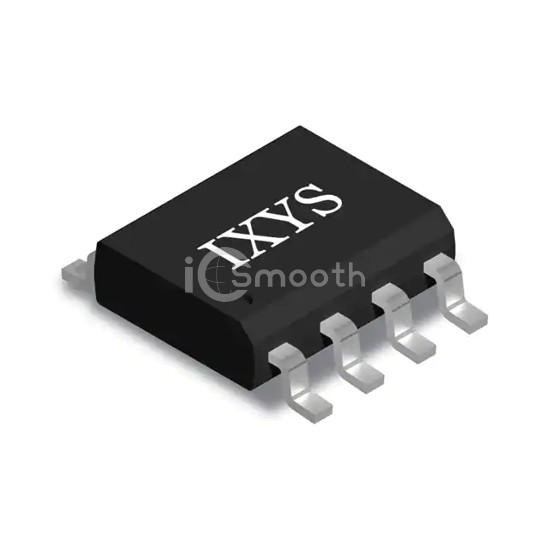

LF2104NTR

IXYS Integrated Circuits Division

GATE DRIVER HALF BRIDGE 0.13A

LF2104NTR is a PMIC - Gate Drivers manufactured by IXYS Integrated Circuits Division. GATE DRIVER HALF BRIDGE 0.13A. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 10V ~ 20V, package / case 8-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 2,153

Tiered Pricing USD

1+ $1.1700 —

10+ $0.8440 -28%

25+ $0.7636 -35%

100+ $0.6746 -42%

250+ $0.6322 -46%

500+ $0.6067 -48%

1,000+ $0.5857 -50% BEST

Specifications

15 parameters

Product Status	Active
Driven Configuration	Half-Bridge
Channel Type	Independent
Number of Drivers	2
Gate Type	IGBT, N-Channel MOSFET
Voltage - Supply	10V ~ 20V
Logic Voltage - VIL, VIH	0.8V, 2.5V
Current - Peak Output (Source, Sink)	290mA, 600mA

Input Type	Inverting
High Side Voltage - Max (Bootstrap)	600 V
Rise / Fall Time (Typ)	70ns, 35ns
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOIC
