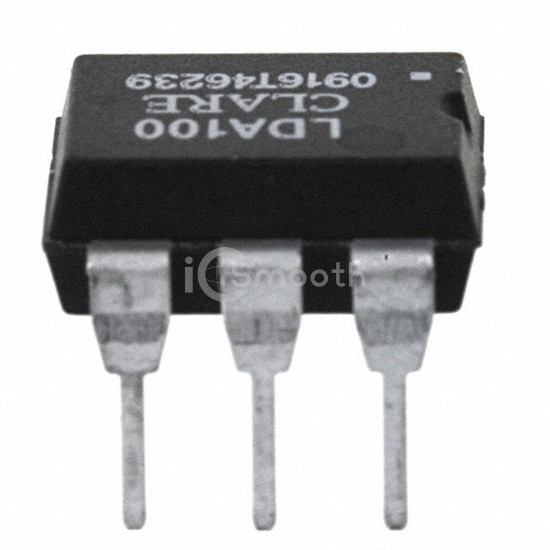

LDA100

IXYS Integrated Circuits Division

OPTOISO 3.75KV TRANS W/BASE 6DIP

LDA100 is a Optoisolators - Transistor, Photovoltaic Output manufactured by IXYS Integrated Circuits Division. OPTOISO 3.75KV TRANS W/BASE 6DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - forward (vf) (typ) 1.2V, package / case 6-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 5,598

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	3750Vrms
Current Transfer Ratio (Min)	33% @ 1mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	7µs, 20µs
Rise / Fall Time (Typ)	-
Input Type	AC, DC
Output Type	Transistor with Base

Voltage - Output (Max)	30V
Current - Output / Channel	-
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	1 mA
Vce Saturation (Max)	500mV
Operating Temperature	-40°C ~ 85°C
Mounting Type	Through Hole
Package / Case	6-DIP (0.300", 7.62mm)
Supplier Device Package	6-DIP
