CPC1596GS

In Stock: 9,342

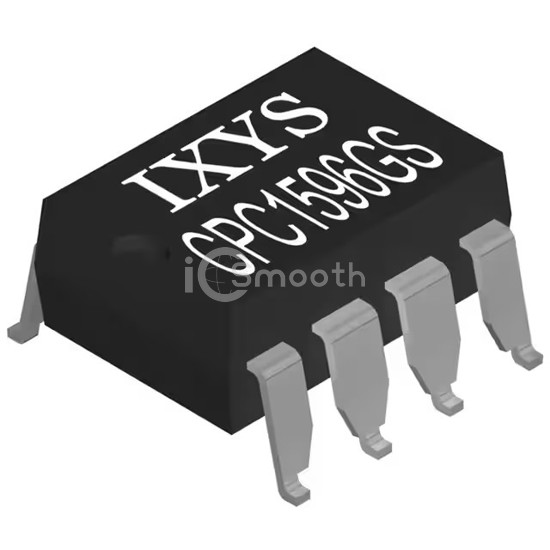

CPC1596GS - IXYS Integrated Circuits Division - Isolators - Gate Drivers
REF: CPC1596GS IXYS Integrated Circuits Division
CPC1596GS

IXYS Integrated Circuits Division

GATE DRIVER OPTICAL 570V 8L SMD

CPC1596GS is a Isolators - Gate Drivers manufactured by IXYS Integrated Circuits Division. GATE DRIVER OPTICAL 570V 8L SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 110°C, voltage - forward (vf) (typ) 1.4V, package / case 8-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 9,342

Specifications

18 parameters
Product StatusActive
TechnologyOptical Coupling
Number of Channels1
Voltage - Isolation3750Vrms
Common Mode Transient Immunity (Min)-
Propagation Delay tpLH / tpHL (Max)-
Pulse Width Distortion (Max)-
Rise / Fall Time (Typ)-
Current - Output High, Low1A, 1A
Current - Peak Output1A
Voltage - Forward (Vf) (Typ)1.4V
Current - DC Forward (If) (Max)10 mA
Voltage - Output Supply15V ~ 570V
Operating Temperature-40°C ~ 110°C
Mounting TypeSurface Mount
Package / Case8-SMD, Gull Wing
Supplier Device Package8-SMD
Approval AgencyCSA, UL
