CPC1596G

In Stock: 2,778

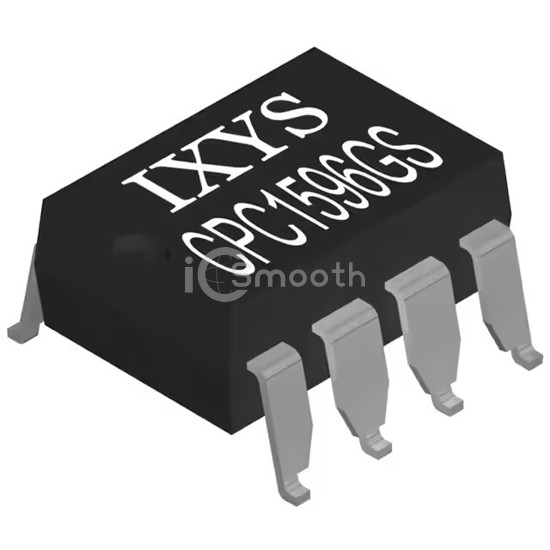

CPC1596G - IXYS Integrated Circuits Division - Isolators - Gate Drivers
REF: CPC1596G IXYS Integrated Circuits Division
CPC1596G

IXYS Integrated Circuits Division

GATE DRIVER OPTICAL 570V 8L DIP

CPC1596G is a Isolators - Gate Drivers manufactured by IXYS Integrated Circuits Division. GATE DRIVER OPTICAL 570V 8L DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 110°C, voltage - forward (vf) (typ) 1.4V, package / case 8-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 2,778

Specifications

18 parameters
Product StatusActive
TechnologyOptical Coupling
Number of Channels1
Voltage - Isolation3750Vrms
Common Mode Transient Immunity (Min)-
Propagation Delay tpLH / tpHL (Max)-
Pulse Width Distortion (Max)-
Rise / Fall Time (Typ)-
Current - Output High, Low1A, 1A
Current - Peak Output1A
Voltage - Forward (Vf) (Typ)1.4V
Current - DC Forward (If) (Max)10 mA
Voltage - Output Supply15V ~ 570V
Operating Temperature-40°C ~ 110°C
Mounting TypeThrough Hole
Package / Case8-DIP (0.300", 7.62mm)
Supplier Device Package8-DIP
Approval AgencyCSA, UL
