Name: CPC1303GRTR
Brand: IXYS Integrated Circuits Division
SKU: CPC1303GRTR
Price: 1.90 USD
Availability: InStock

REF: CPC1303GRTR IXYS Integrated Circuits Division

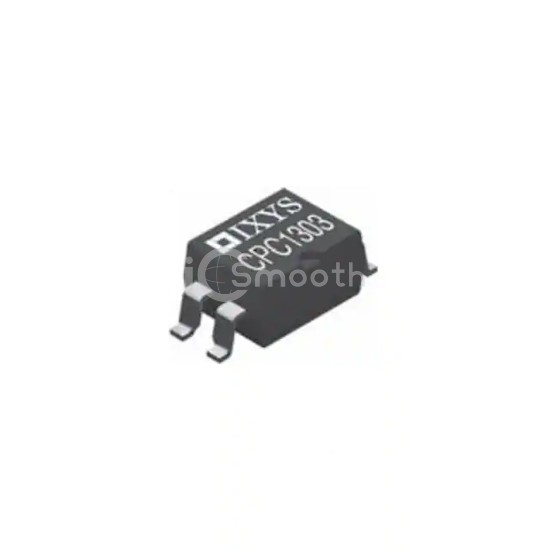

CPC1303GRTR

IXYS Integrated Circuits Division

OPTOISOLATOR 5KV TRANSISTOR 4SMD

CPC1303GRTR is a Optoisolators - Transistor, Photovoltaic Output manufactured by IXYS Integrated Circuits Division. OPTOISOLATOR 5KV TRANSISTOR 4SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - forward (vf) (typ) 1.2V, package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 1,545

Tiered Pricing USD

1+ $1.9000 —

10+ $1.3580 -29%

100+ $1.0335 -46%

500+ $0.8901 -53% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	200% @ 200µA
Current Transfer Ratio (Max)	2500% @ 200µA
Turn On / Turn Off Time (Typ)	2µs, 8µs
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	30V
Current - Output / Channel	-
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	500mV
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SMD
