Name: CPC1302GS
Brand: IXYS Integrated Circuits Division
SKU: CPC1302GS
Price: 3.45 USD
Availability: InStock

REF: CPC1302GS IXYS Integrated Circuits Division

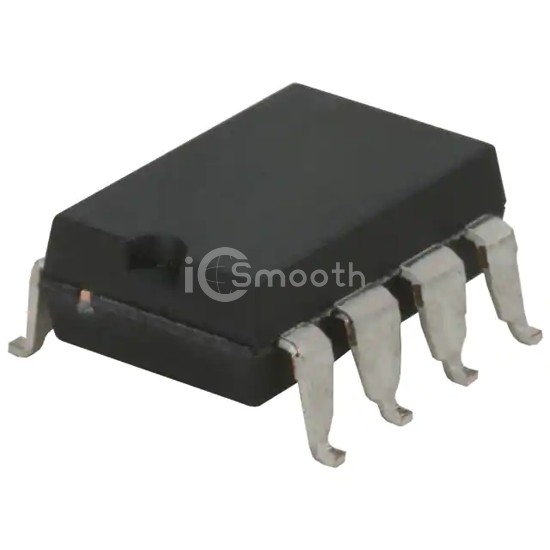

CPC1302GS

IXYS Integrated Circuits Division

OPTOISOLTR 3.75KV 2CH DARL 8SMD

CPC1302GS is a Optoisolators - Transistor, Photovoltaic Output manufactured by IXYS Integrated Circuits Division. OPTOISOLTR 3.75KV 2CH DARL 8SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - forward (vf) (typ) 1.2V, package / case 8-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 7,378

Tiered Pricing USD

1+ $3.4500 —

50+ $2.1144 -39%

100+ $1.9790 -43%

500+ $1.7385 -50%

1,000+ $1.6602 -52%

2,000+ $1.5940 -54%

5,000+ $1.5218 -56% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	2
Voltage - Isolation	3750Vrms
Current Transfer Ratio (Min)	1000% @ 1mA
Current Transfer Ratio (Max)	8000% @ 1mA
Turn On / Turn Off Time (Typ)	5µs, 60µs
Rise / Fall Time (Typ)	40µs, 5µs
Input Type	DC
Output Type	Darlington

Voltage - Output (Max)	350V
Current - Output / Channel	-
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	1 mA
Vce Saturation (Max)	1.2V
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	8-SMD, Gull Wing
Supplier Device Package	8-SMD
