Name: CPC1301GRTR
Brand: IXYS Integrated Circuits Division
SKU: CPC1301GRTR
Price: 2.29 USD
Availability: InStock

REF: CPC1301GRTR IXYS Integrated Circuits Division

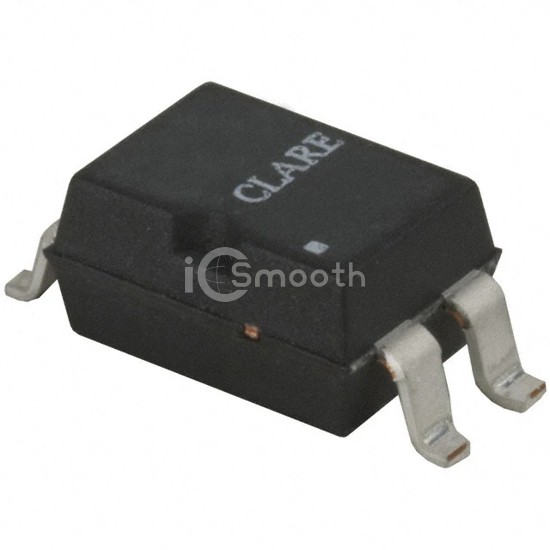

CPC1301GRTR

IXYS Integrated Circuits Division

OPTOISOLTR 5KV DARLINGTON 4-SMD

CPC1301GRTR is a Optoisolators - Transistor, Photovoltaic Output manufactured by IXYS Integrated Circuits Division. OPTOISOLTR 5KV DARLINGTON 4-SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - forward (vf) (typ) 1.2V, package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 7,370

Tiered Pricing USD

1+ $2.2900 —

10+ $1.6500 -28%

100+ $1.2668 -45%

500+ $1.0980 -52% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	1000% @ 1mA
Current Transfer Ratio (Max)	8000% @ 1mA
Turn On / Turn Off Time (Typ)	1µs, 80µs
Rise / Fall Time (Typ)	40µs, 2.6µs
Input Type	DC
Output Type	Darlington

Voltage - Output (Max)	350V
Current - Output / Channel	-
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	1 mA
Vce Saturation (Max)	1.2V
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SMD
