Name: TLP620X
Brand: Isocom Components 2004 LTD
SKU: TLP620X
Price: 0.57 USD
Availability: InStock

REF: TLP620X Isocom Components 2004 LTD

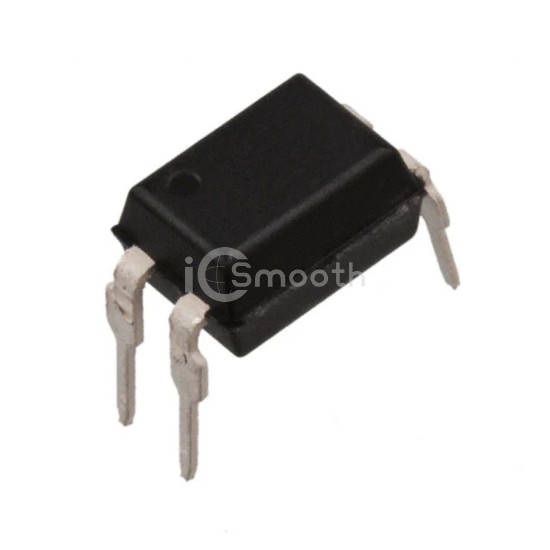

TLP620X

Isocom Components 2004 LTD

OPTOISO 5.3KV TRANS 4DIP

TLP620X is a Optoisolators - Transistor, Photovoltaic Output manufactured by Isocom Components 2004 LTD. OPTOISO 5.3KV TRANS 4DIP. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 100°C, voltage - forward (vf) (typ) 1.15V, package / case 4-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 5,106

Tiered Pricing USD

1+ $0.5700 —

10+ $0.3960 -31%

100+ $0.2859 -50%

500+ $0.2363 -59%

1,000+ $0.2200 -61%

2,000+ $0.2062 -64%

5,000+ $0.1910 -66%

10,000+ $0.1815 -68%

25,000+ $0.1712 -70% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5300Vrms
Current Transfer Ratio (Min)	50% @ 5mA
Current Transfer Ratio (Max)	600% @ 5mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	4µs, 3µs
Input Type	AC, DC
Output Type	Transistor

Voltage - Output (Max)	55V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.15V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	400mV
Operating Temperature	-30°C ~ 100°C
Mounting Type	Through Hole
Package / Case	4-DIP (0.300", 7.62mm)
Supplier Device Package	4-DIP
