SFH615A-4X

In Stock: 4,402

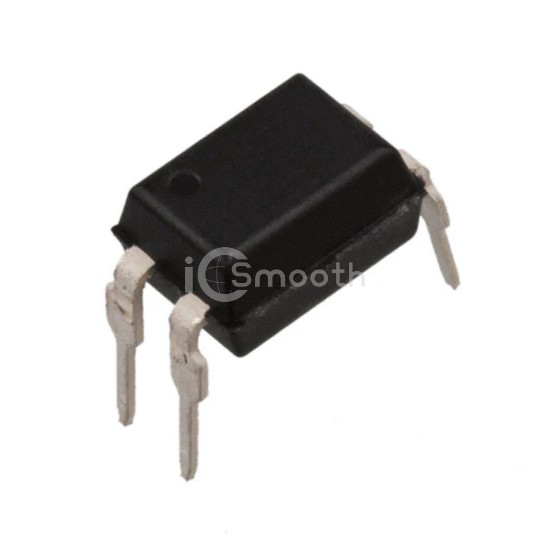

SFH615A-4X - Isocom Components 2004 LTD - Optoisolators - Transistor, Photovoltaic Output
REF: SFH615A-4X Isocom Components 2004 LTD
SFH615A-4X

Isocom Components 2004 LTD

OPTOISOLATOR 5.3KV TRANS 4DIP

SFH615A-4X is a Optoisolators - Transistor, Photovoltaic Output manufactured by Isocom Components 2004 LTD. OPTOISOLATOR 5.3KV TRANS 4DIP. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 100°C, voltage - forward (vf) (typ) 1.65V (Max), package / case 4-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 4,402

Tiered Pricing USD
1+ $0.4500 —
10+ $0.3110 -31%
100+ $0.2223 -51%
500+ $0.1823 -59%
1,000+ $0.1691 -62%
2,000+ $0.1579 -65%
5,000+ $0.1456 -68%
10,000+ $0.1379 -69%
25,000+ $0.1296 -71% BEST

Specifications

18 parameters
Product StatusActive
Number of Channels1
Voltage - Isolation5300Vrms
Current Transfer Ratio (Min)160% @ 10mA
Current Transfer Ratio (Max)320% @ 10mA
Turn On / Turn Off Time (Typ)6µs, 25µs
Rise / Fall Time (Typ)4.6µs, 15µs
Input TypeDC
Output TypeTransistor
Voltage - Output (Max)70V
Current - Output / Channel50mA
Voltage - Forward (Vf) (Typ)1.65V (Max)
Current - DC Forward (If) (Max)50 mA
Vce Saturation (Max)400mV
Operating Temperature-30°C ~ 100°C
Mounting TypeThrough Hole
Package / Case4-DIP (0.300", 7.62mm)
Supplier Device Package4-DIP
