Name: SFH615A-2XSMT/R
Brand: Isocom Components 2004 LTD
SKU: SFH615A-2XSMT/R
Price: 0.17 USD
Availability: InStock

REF: SFH615A-2XSMT/R Isocom Components 2004 LTD

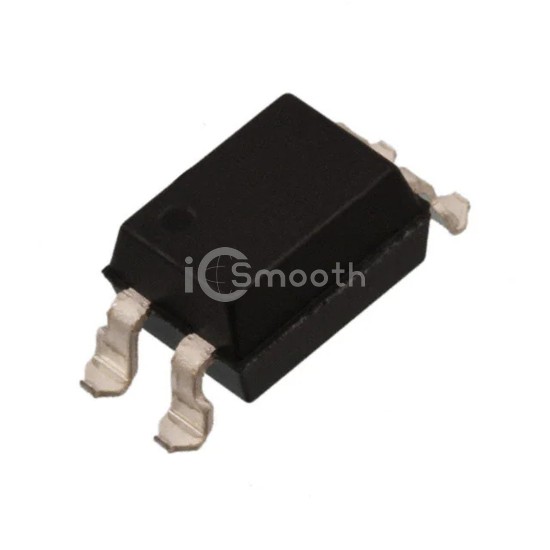

SFH615A-2XSMT/R

Isocom Components 2004 LTD

OPTOISOLATOR 5.3KV TRANS 4SMD

SFH615A-2XSMT/R is a Optoisolators - Transistor, Photovoltaic Output manufactured by Isocom Components 2004 LTD. OPTOISOLATOR 5.3KV TRANS 4SMD. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 100°C, voltage - forward (vf) (typ) 1.65V (Max), package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 9,471

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5300Vrms
Current Transfer Ratio (Min)	63% @ 10mA
Current Transfer Ratio (Max)	125% @ 10mA
Turn On / Turn Off Time (Typ)	4.2µs, 23µs
Rise / Fall Time (Typ)	3µs, 14µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	70V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.65V (Max)
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	400mV
Operating Temperature	-30°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	-
