Name: MOC3012X
Brand: Isocom Components 2004 LTD
SKU: MOC3012X
Price: 0.84 USD
Availability: InStock

REF: MOC3012X Isocom Components 2004 LTD

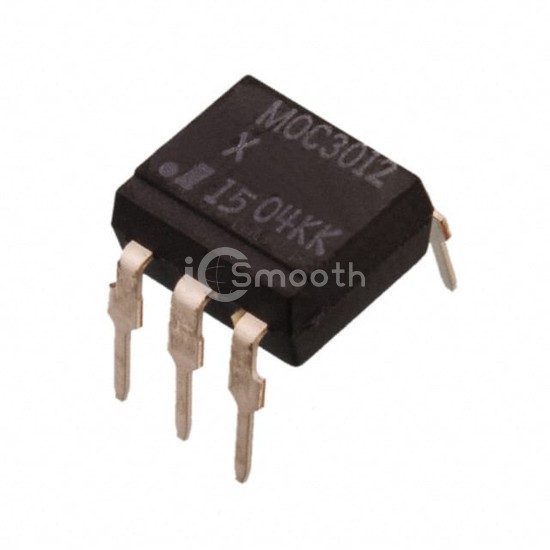

MOC3012X

Isocom Components 2004 LTD

OPTOISOLATOR 5.3KV TRIAC 6DIP

MOC3012X is a Optoisolators - Triac, SCR Output manufactured by Isocom Components 2004 LTD. OPTOISOLATOR 5.3KV TRIAC 6DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 6-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 4,472

Tiered Pricing USD

1+ $0.8400 —

65+ $0.4497 -46%

130+ $0.4132 -51%

520+ $0.3555 -58%

1,040+ $0.3330 -60%

2,015+ $0.3147 -63%

5,005+ $0.2937 -65%

10,010+ $0.2806 -67%

25,025+ $0.2662 -68% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Triac
Zero Crossing Circuit	No
Number of Channels	1
Voltage - Isolation	5300Vrms
Voltage - Off State	250 V
Static dV/dt (Min)	10V/µs (Typ)
Current - LED Trigger (Ift) (Max)	5mA
Current - On State (It (RMS)) (Max)	-

Current - Hold (Ih)	100µA
Turn On Time	-
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Operating Temperature	-40°C ~ 100°C
Mounting Type	Through Hole
Package / Case	6-DIP (0.300", 7.62mm)
Supplier Device Package	-
Approval Agency	UR, VDE
