Name: ISP827X
Brand: Isocom Components 2004 LTD
SKU: ISP827X
Price: 0.84 USD
Availability: InStock

REF: ISP827X Isocom Components 2004 LTD

ISP827X

Isocom Components 2004 LTD

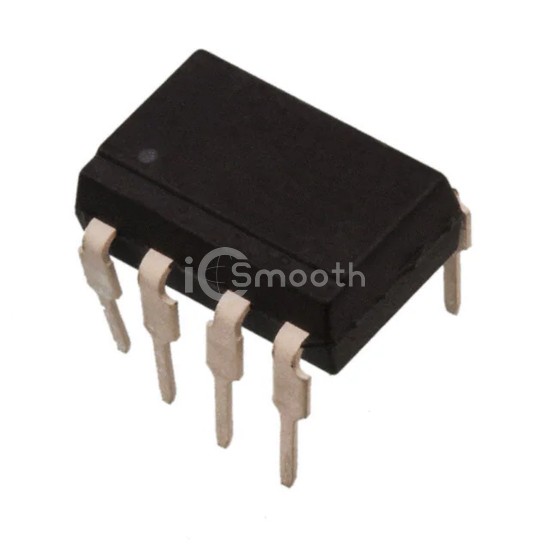

OPTOISO 5.3KV 2CH TRANS 8DIP

ISP827X is a Optoisolators - Transistor, Photovoltaic Output manufactured by Isocom Components 2004 LTD. OPTOISO 5.3KV 2CH TRANS 8DIP. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 8-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 3,733

Tiered Pricing USD

1+ $0.8400 —

50+ $0.4650 -45%

100+ $0.4263 -49%

500+ $0.3569 -58%

1,000+ $0.3342 -60%

2,000+ $0.3148 -63%

5,000+ $0.2937 -65%

10,000+ $0.2806 -67%

25,000+ $0.2662 -68% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	2
Voltage - Isolation	5300Vrms
Current Transfer Ratio (Min)	50% @ 5mA
Current Transfer Ratio (Max)	600% @ 5mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	4µs, 3µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	35V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	200mV
Operating Temperature	-30°C ~ 100°C
Mounting Type	Through Hole
Package / Case	8-DIP (0.300", 7.62mm)
Supplier Device Package	-
