Name: ISP817AX
Brand: Isocom Components 2004 LTD
SKU: ISP817AX
Price: 0.57 USD
Availability: InStock

REF: ISP817AX Isocom Components 2004 LTD

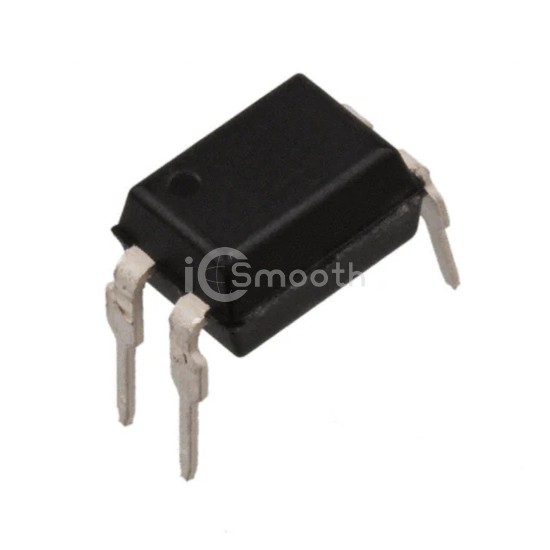

ISP817AX

Isocom Components 2004 LTD

OPTOISO 5.3KV TRANS 4DIP

ISP817AX is a Optoisolators - Transistor, Photovoltaic Output manufactured by Isocom Components 2004 LTD. OPTOISO 5.3KV TRANS 4DIP. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 4-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 387

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5300Vrms
Current Transfer Ratio (Min)	80% @ 5mA
Current Transfer Ratio (Max)	160% @ 5mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	4µs, 3µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	80V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	200mV
Operating Temperature	-30°C ~ 100°C
Mounting Type	Through Hole
Package / Case	4-DIP (0.300", 7.62mm)
Supplier Device Package	-
