Name: ISP814XSM
Brand: Isocom Components 2004 LTD
SKU: ISP814XSM
Price: 0.63 USD
Availability: InStock

REF: ISP814XSM Isocom Components 2004 LTD

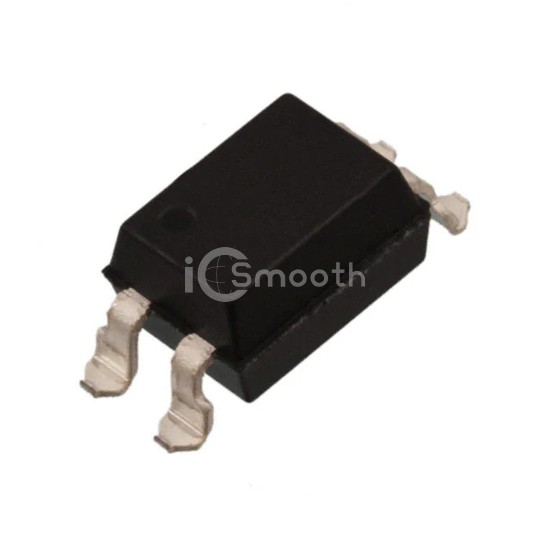

ISP814XSM

Isocom Components 2004 LTD

OPTOISO 5.3KV TRANS 4SMD

ISP814XSM is a Optoisolators - Transistor, Photovoltaic Output manufactured by Isocom Components 2004 LTD. OPTOISO 5.3KV TRANS 4SMD. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 272

Tiered Pricing USD

1+ $0.6300 —

10+ $0.4370 -31%

100+ $0.3168 -50%

500+ $0.2627 -58%

1,000+ $0.2449 -61%

2,000+ $0.2298 -64%

5,000+ $0.2133 -66%

10,000+ $0.2030 -68%

25,000+ $0.1918 -70% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5300Vrms
Current Transfer Ratio (Min)	20% @ 1mA
Current Transfer Ratio (Max)	300% @ 1mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	4µs, 3µs
Input Type	AC, DC
Output Type	Transistor

Voltage - Output (Max)	35V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	200mV
Operating Temperature	-30°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SMD
