ISP814X

In Stock: 1,348

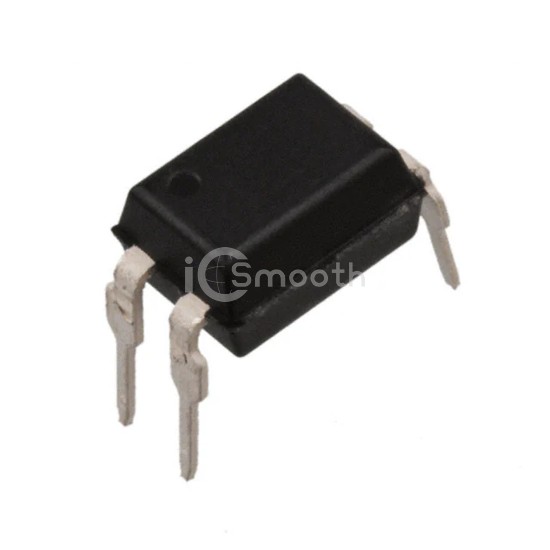

ISP814X - Isocom Components 2004 LTD - Optoisolators - Transistor, Photovoltaic Output
REF: ISP814X Isocom Components 2004 LTD
ISP814X

Isocom Components 2004 LTD

OPTOISO 5.3KV TRANS 4DIP

ISP814X is a Optoisolators - Transistor, Photovoltaic Output manufactured by Isocom Components 2004 LTD. OPTOISO 5.3KV TRANS 4DIP. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 4-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 1,348

Tiered Pricing USD
1+ $0.5900 —
10+ $0.4100 -31%
100+ $0.2963 -50%
500+ $0.2451 -58%
1,000+ $0.2283 -61%
2,000+ $0.2141 -64%
5,000+ $0.1984 -66%
10,000+ $0.1887 -68%
25,000+ $0.1781 -70% BEST

Specifications

18 parameters
Product StatusActive
Number of Channels1
Voltage - Isolation5300Vrms
Current Transfer Ratio (Min)20% @ 1mA
Current Transfer Ratio (Max)300% @ 1mA
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)4µs, 3µs
Input TypeAC, DC
Output TypeTransistor
Voltage - Output (Max)35V
Current - Output / Channel50mA
Voltage - Forward (Vf) (Typ)1.2V
Current - DC Forward (If) (Max)50 mA
Vce Saturation (Max)200mV
Operating Temperature-30°C ~ 100°C
Mounting TypeThrough Hole
Package / Case4-DIP (0.300", 7.62mm)
Supplier Device Package4-DIP
