IS480P

In Stock: 1,852

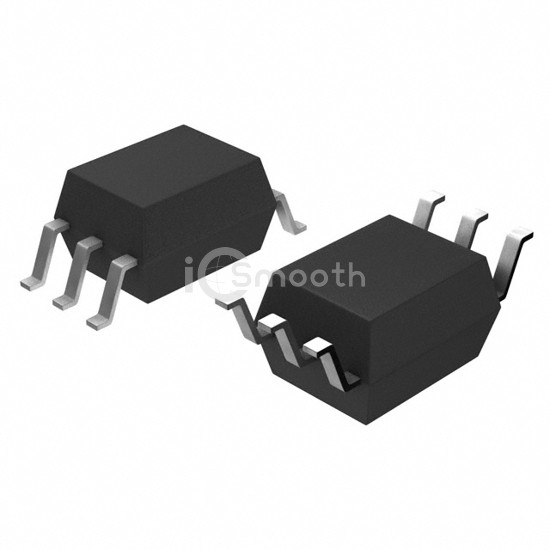

IS480P - Isocom Components 2004 LTD - Isolators - Gate Drivers
REF: IS480P Isocom Components 2004 LTD
IS480P

Isocom Components 2004 LTD

OPTOISO 5KV 1CH GATE DRIVER 6SO

IS480P is a Isolators - Gate Drivers manufactured by Isocom Components 2004 LTD. OPTOISO 5KV 1CH GATE DRIVER 6SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - forward (vf) (typ) 1.33V, package / case 6-SOIC (0.268", 6.80mm Width).

Datasheet Request a Quote

In Stock: 1,852

Tiered Pricing USD
1+ $2.0700 —
10+ $1.4860 -28%
100+ $1.1358 -45%
500+ $0.9811 -53% BEST

Specifications

18 parameters
Product StatusActive
TechnologyOptical Coupling
Number of Channels1
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)20kV/µs
Propagation Delay tpLH / tpHL (Max)200ns, 220ns
Pulse Width Distortion (Max)120ns
Rise / Fall Time (Typ)35ns, 35ns
Current - Output High, Low200mA, 200mA
Current - Peak Output-
Voltage - Forward (Vf) (Typ)1.33V
Current - DC Forward (If) (Max)10 mA
Voltage - Output Supply4.5V ~ 30V
Operating Temperature-40°C ~ 105°C
Mounting TypeSurface Mount
Package / Case6-SOIC (0.268", 6.80mm Width)
Supplier Device Package6-SO Stretched
Approval Agency-
