IS341W

In Stock: 283

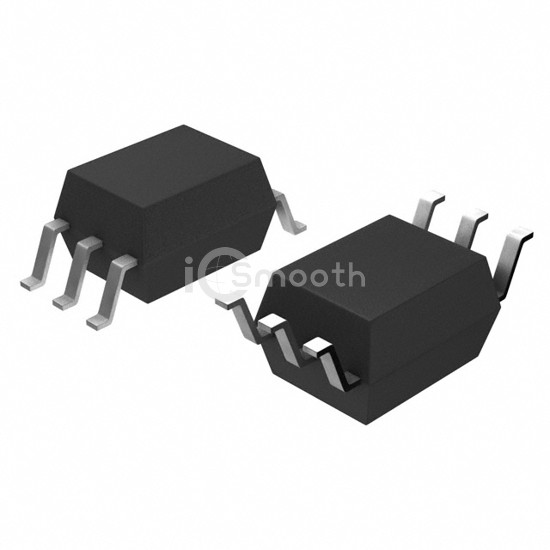

IS341W - Isocom Components 2004 LTD - Isolators - Gate Drivers
REF: IS341W Isocom Components 2004 LTD
IS341W

Isocom Components 2004 LTD

6 PIN IGBT GATE DRIVEWIDE BODY &

IS341W is a Isolators - Gate Drivers manufactured by Isocom Components 2004 LTD. 6 PIN IGBT GATE DRIVEWIDE BODY &. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - forward (vf) (typ) 1.37V, package / case 6-SOIC (0.268", 6.80mm Width).

Datasheet Request a Quote

In Stock: 283

Tiered Pricing USD
1+ $2.0400 —
10+ $1.4650 -28%
100+ $1.1187 -45%
500+ $0.9659 -53% BEST

Specifications

18 parameters
Product StatusActive
TechnologyOptical Coupling
Number of Channels1
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)20kV/µs
Propagation Delay tpLH / tpHL (Max)200ns, 200ns
Pulse Width Distortion (Max)70ns
Rise / Fall Time (Typ)35ns, 35ns
Current - Output High, Low2.5A, 2.5A
Current - Peak Output3A
Voltage - Forward (Vf) (Typ)1.37V
Current - DC Forward (If) (Max)25 mA
Voltage - Output Supply15V ~ 30V
Operating Temperature-40°C ~ 105°C
Mounting TypeSurface Mount
Package / Case6-SOIC (0.268", 6.80mm Width)
Supplier Device Package6-SO Stretched
Approval Agency-
