IS314W

In Stock: 5,318

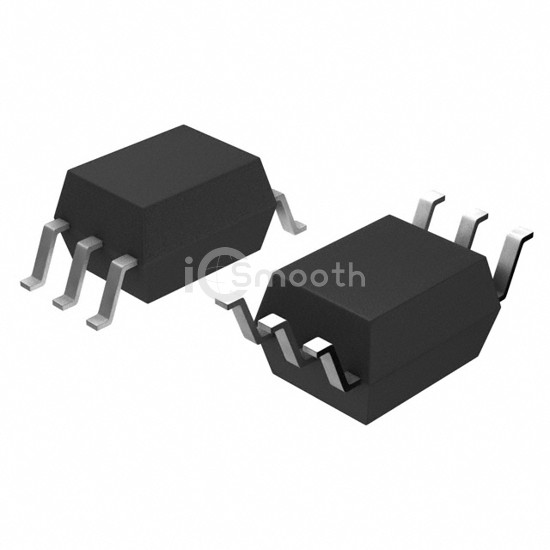

IS314W - Isocom Components 2004 LTD - Isolators - Gate Drivers
REF: IS314W Isocom Components 2004 LTD
IS314W

Isocom Components 2004 LTD

OPTOISO 5KV 1CH GATE DRIVER 6SO

IS314W is a Isolators - Gate Drivers manufactured by Isocom Components 2004 LTD. OPTOISO 5KV 1CH GATE DRIVER 6SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - forward (vf) (typ) 1.37V, package / case 6-SOIC (0.268", 6.80mm Width).

Datasheet Request a Quote

In Stock: 5,318

Tiered Pricing USD
1+ $1.5400 —
10+ $1.0930 -29%
100+ $0.8233 -47%
500+ $0.7040 -54% BEST

Specifications

18 parameters
Product StatusActive
TechnologyOptical Coupling
Number of Channels1
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)20kV/µs
Propagation Delay tpLH / tpHL (Max)200ns, 200ns
Pulse Width Distortion (Max)70ns
Rise / Fall Time (Typ)35ns, 35ns
Current - Output High, Low800mA, 800mA
Current - Peak Output1A
Voltage - Forward (Vf) (Typ)1.37V
Current - DC Forward (If) (Max)25 mA
Voltage - Output Supply10V ~ 30V
Operating Temperature-40°C ~ 105°C
Mounting TypeSurface Mount
Package / Case6-SOIC (0.268", 6.80mm Width)
Supplier Device Package6-SO Stretched
Approval Agency-
