IS314P

In Stock: 2,812

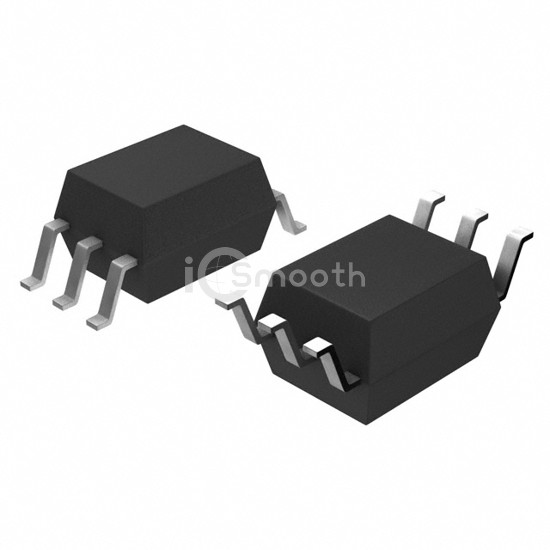

IS314P - Isocom Components 2004 LTD - Isolators - Gate Drivers
REF: IS314P Isocom Components 2004 LTD
IS314P

Isocom Components 2004 LTD

6 PIN IGBT GATE DRIVEWIDE BODY H

IS314P is a Isolators - Gate Drivers manufactured by Isocom Components 2004 LTD. 6 PIN IGBT GATE DRIVEWIDE BODY H. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - forward (vf) (typ) 1.37V, package / case 6-SOIC (0.268", 6.80mm Width).

Datasheet Request a Quote

In Stock: 2,812

Tiered Pricing USD
1+ $1.7800 —
10+ $1.2700 -29%
100+ $0.9637 -46%
500+ $0.8282 -53% BEST

Specifications

18 parameters
Product StatusActive
TechnologyOptical Coupling
Number of Channels1
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)20kV/µs
Propagation Delay tpLH / tpHL (Max)200ns, 200ns
Pulse Width Distortion (Max)70ns
Rise / Fall Time (Typ)35ns, 35ns
Current - Output High, Low800mA, 800mA
Current - Peak Output1A
Voltage - Forward (Vf) (Typ)1.37V
Current - DC Forward (If) (Max)25 mA
Voltage - Output Supply10V ~ 30V
Operating Temperature-40°C ~ 105°C
Mounting TypeSurface Mount
Package / Case6-SOIC (0.268", 6.80mm Width)
Supplier Device Package6-SO Stretched
Approval Agency-
