ICPL3120

In Stock: 427
ICPL3120 - Isocom Components 2004 LTD - Isolators - Gate Drivers
REF: ICPL3120 Isocom Components 2004 LTD
ICPL3120

Isocom Components 2004 LTD

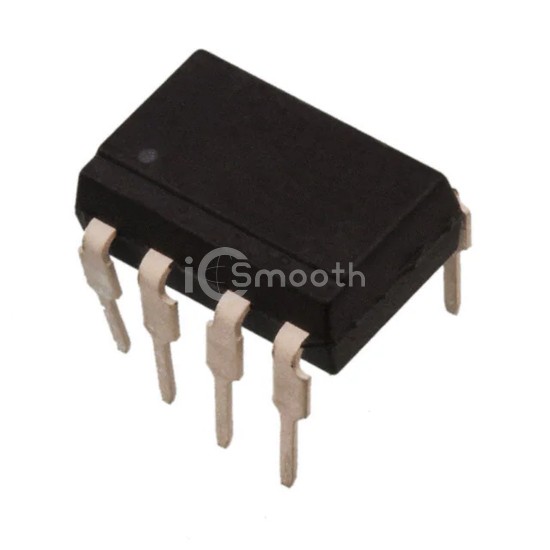

OPTOISO 5KV 1CH GATE DRIVER 8DIP

ICPL3120 is a Isolators - Gate Drivers manufactured by Isocom Components 2004 LTD. OPTOISO 5KV 1CH GATE DRIVER 8DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 110°C, voltage - forward (vf) (typ) 1.37V, package / case 8-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 427

Tiered Pricing USD
1+ $2.1300 —
50+ $1.2586 -41%
100+ $1.1698 -45%
500+ $1.0114 -53%
1,000+ $0.9598 -55%
2,000+ $0.9160 -57%
5,000+ $0.8683 -59%
10,000+ $0.8386 -61% BEST

Specifications

18 parameters
Product StatusActive
TechnologyOptical Coupling
Number of Channels1
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)25kV/µs
Propagation Delay tpLH / tpHL (Max)500ns, 500ns
Pulse Width Distortion (Max)100ns
Rise / Fall Time (Typ)100ns, 100ns
Current - Output High, Low2A, 2A
Current - Peak Output2.5A
Voltage - Forward (Vf) (Typ)1.37V
Current - DC Forward (If) (Max)25 mA
Voltage - Output Supply15V ~ 30V
Operating Temperature-40°C ~ 110°C
Mounting TypeThrough Hole
Package / Case8-DIP (0.300", 7.62mm)
Supplier Device Package8-DIP
Approval Agency-
