IVCR2401DPR

In Stock: 3,790

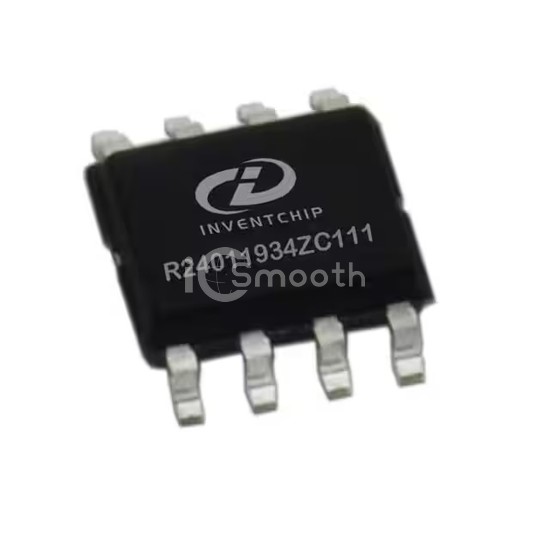

IVCR2401DPR - Inventchip - PMIC - Gate Drivers
REF: IVCR2401DPR Inventchip
IVCR2401DPR

Inventchip

GENERAL PURPOSE DRIVER, 25V 4A S

IVCR2401DPR is a PMIC - Gate Drivers manufactured by Inventchip. GENERAL PURPOSE DRIVER, 25V 4A S. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 8V ~ 20V, package / case 8-SOIC (0.154", 3.90mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 3,790

Tiered Pricing USD
1+ $0.5200 —
10+ $0.3670 -29%
25+ $0.3276 -37%
100+ $0.2850 -45%
250+ $0.2646 -49%
500+ $0.2523 -51%
1,000+ $0.2422 -53% BEST

Specifications

15 parameters
Product StatusActive
Driven ConfigurationLow-Side
Channel TypeIndependent
Number of Drivers2
Gate TypeN-Channel, P-Channel MOSFET
Voltage - Supply8V ~ 20V
Logic Voltage - VIL, VIH1.7V, 1.6V
Current - Peak Output (Source, Sink)4A, 4A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)13ns, 13ns
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case8-SOIC (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package8-SOIC-EP
