ISL89164FRTAZ

In Stock: 463

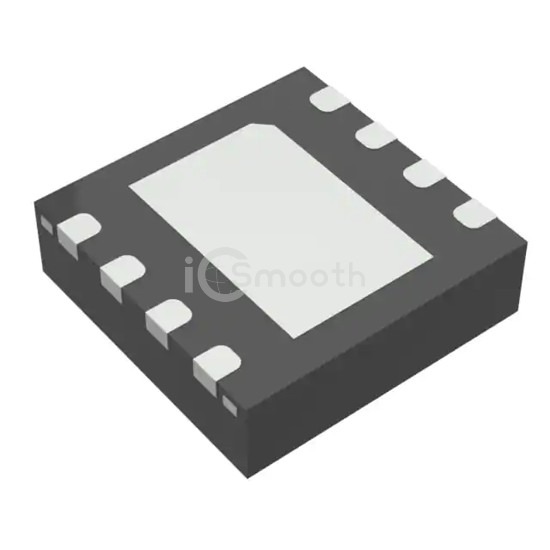

ISL89164FRTAZ - Intersil - PMIC - Gate Drivers
REF: ISL89164FRTAZ Intersil
ISL89164FRTAZ

Intersil

AND GATE BASED MOSFET DRIVER, 6A

ISL89164FRTAZ is a PMIC - Gate Drivers manufactured by Intersil. AND GATE BASED MOSFET DRIVER, 6A. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 4.5V ~ 16V, package / case 8-WDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 463

Specifications

15 parameters
Product StatusActive
Driven ConfigurationLow-Side
Channel TypeIndependent
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply4.5V ~ 16V
Logic Voltage - VIL, VIH1.22V, 2.08V
Current - Peak Output (Source, Sink)6A, 6A
Input TypeInverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)20ns, 20ns
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case8-WDFN Exposed Pad
Supplier Device Package8-TDFN (3x3)
