ISL89161FRTBZ

In Stock: 945

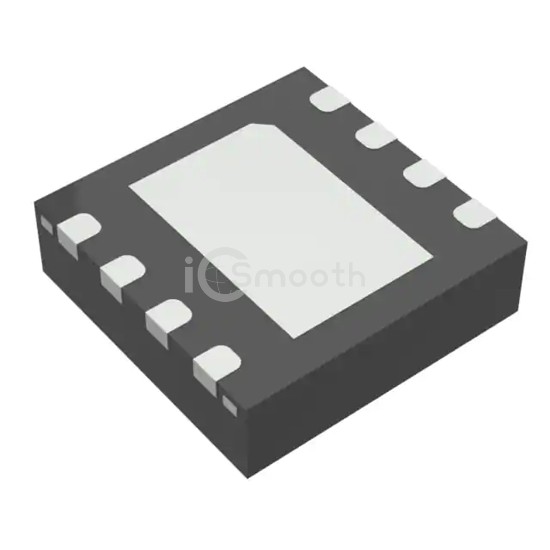

ISL89161FRTBZ - Intersil - PMIC - Gate Drivers
REF: ISL89161FRTBZ Intersil
ISL89161FRTBZ

Intersil

AND GATE BASED MOSFET DRIVER

ISL89161FRTBZ is a PMIC - Gate Drivers manufactured by Intersil. AND GATE BASED MOSFET DRIVER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 4.5V ~ 16V, package / case 8-WDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 945

Specifications

15 parameters
Product StatusObsolete
Driven ConfigurationLow-Side
Channel TypeIndependent
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply4.5V ~ 16V
Logic Voltage - VIL, VIH1.85V, 3.15V
Current - Peak Output (Source, Sink)6A, 6A
Input TypeInverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)20ns, 20ns
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case8-WDFN Exposed Pad
Supplier Device Package8-TDFN (3x3)
