ISL8103IRZ

In Stock: 430

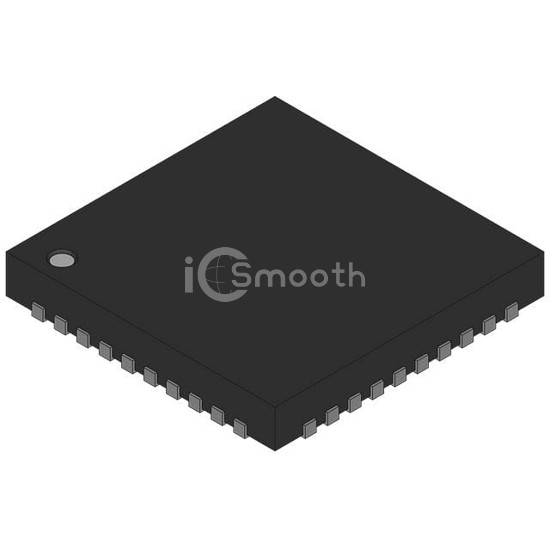

ISL8103IRZ - Intersil - PMIC - Voltage Regulators - DC DC Switching Controllers
REF: ISL8103IRZ Intersil
ISL8103IRZ

Intersil

SWITCHING CONTROLLER

ISL8103IRZ is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Intersil. SWITCHING CONTROLLER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 4.75V ~ 12.6V, package / case 40-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 430

Specifications

18 parameters
Product StatusObsolete
Output TypeTransistor Driver
FunctionStep-Down
Output ConfigurationPositive
TopologyBuck
Number of Outputs3
Output Phases3
Voltage - Supply (Vcc/Vdd)4.75V ~ 12.6V
Frequency - SwitchingUp to 1.5MHz
Duty Cycle (Max)66.6%
Synchronous RectifierYes
Clock SyncNo
Serial Interfaces-
Control FeaturesEnable, Frequency Control, Phase Control, Power Good
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case40-VFQFN Exposed Pad
Supplier Device Package40-QFN (6x6)
