ISL6551IB-T

In Stock: 2,000

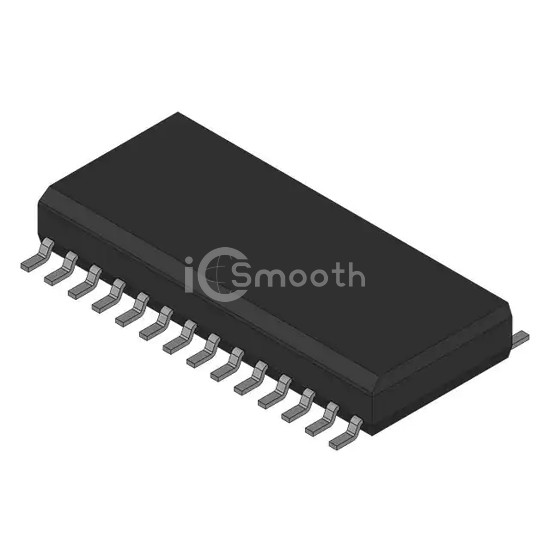

ISL6551IB-T - Intersil - PMIC - Voltage Regulators - DC DC Switching Controllers
REF: ISL6551IB-T Intersil
ISL6551IB-T

Intersil

ZVS FULL BRIDGE PWM CONTROLLER

ISL6551IB-T is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Intersil. ZVS FULL BRIDGE PWM CONTROLLER. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 85°C (TA), voltage - supply (vcc/vdd) 10.8V ~ 13.2V, package / case 28-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 2,000

Specifications

18 parameters
Product StatusActive
Output TypeTransistor Driver
FunctionStep-Up/Step-Down
Output ConfigurationPositive, Isolation Capable
TopologyFull-Bridge
Number of Outputs1
Output Phases1
Voltage - Supply (Vcc/Vdd)10.8V ~ 13.2V
Frequency - Switching50kHz ~ 500kHz
Duty Cycle (Max)50%
Synchronous RectifierYes
Clock SyncNo
Serial Interfaces-
Control FeaturesCurrent Limit, Dead Time Control, Enable, Soft Start
Operating Temperature0°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case28-SOIC (0.295", 7.50mm Width)
Supplier Device Package28-SOIC
