ISL6307BIRZ

In Stock: 904

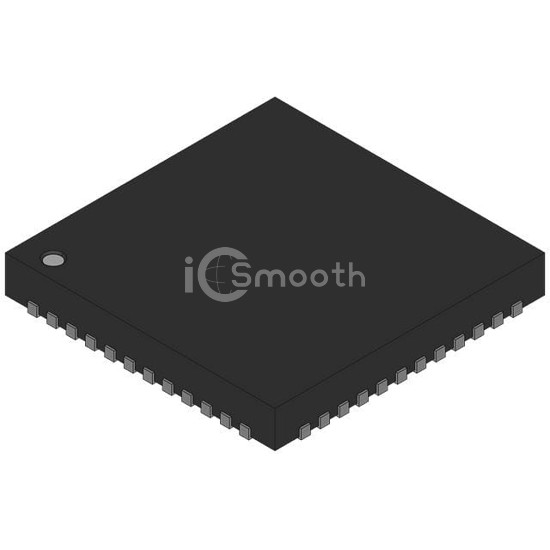

ISL6307BIRZ - Intersil - PMIC - Voltage Regulators - DC DC Switching Controllers
REF: ISL6307BIRZ Intersil
ISL6307BIRZ

Intersil

SWITCHING CONTROLLER

ISL6307BIRZ is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Intersil. SWITCHING CONTROLLER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 4.75V ~ 5.25V, package / case 48-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 904

Specifications

18 parameters
Product StatusObsolete
Output TypePWM Signal
FunctionStep-Down
Output ConfigurationPositive
TopologyBuck
Number of Outputs6
Output Phases6
Voltage - Supply (Vcc/Vdd)4.75V ~ 5.25V
Frequency - Switching80kHz ~ 1MHz
Duty Cycle (Max)66.7%
Synchronous Rectifier-
Clock SyncNo
Serial Interfaces-
Control FeaturesEnable, Frequency Control, Soft Start
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case48-VFQFN Exposed Pad
Supplier Device Package48-QFN (7x7)
