ISL6207HRZ

In Stock: 3,135

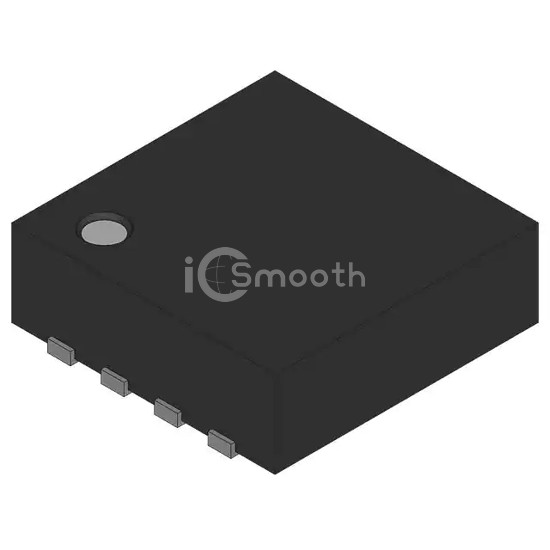

ISL6207HRZ - Intersil - PMIC - Gate Drivers
REF: ISL6207HRZ Intersil
ISL6207HRZ

Intersil

HALF BRIDGE BASED MOSFET DRIVER

ISL6207HRZ is a PMIC - Gate Drivers manufactured by Intersil. HALF BRIDGE BASED MOSFET DRIVER. Key specifications: mounting type Surface Mount, operating temperature -10°C ~ 125°C (TJ), voltage - supply 4.5V ~ 5.5V, package / case 8-VQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 3,135

Specifications

15 parameters
Product StatusObsolete
Driven ConfigurationHalf-Bridge
Channel TypeSynchronous
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply4.5V ~ 5.5V
Logic Voltage - VIL, VIH1V, 2V
Current - Peak Output (Source, Sink)2A, 2A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)36 V
Rise / Fall Time (Typ)8ns, 8ns
Operating Temperature-10°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case8-VQFN Exposed Pad
Supplier Device Package8-QFN (3x3)
