HIP2100IR4

In Stock: 1,815

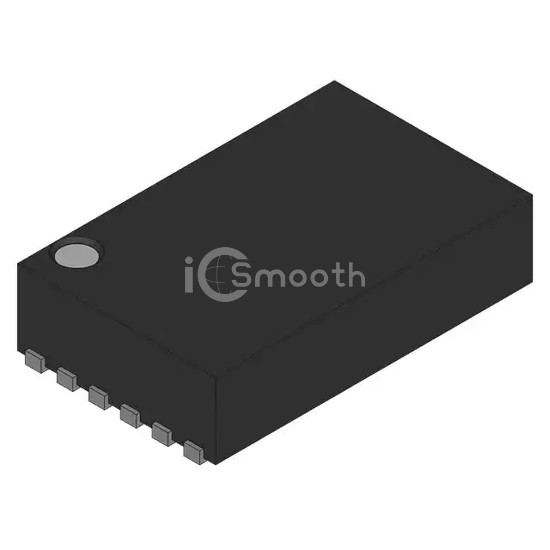

HIP2100IR4 - Intersil - PMIC - Gate Drivers
REF: HIP2100IR4 Intersil
HIP2100IR4

Intersil

HALF BRIDGE BASED MOSFET DRIVER

HIP2100IR4 is a PMIC - Gate Drivers manufactured by Intersil. HALF BRIDGE BASED MOSFET DRIVER. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), voltage - supply 9V ~ 14V, package / case 12-VFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 1,815

Specifications

15 parameters
Product StatusObsolete
Driven ConfigurationHalf-Bridge
Channel TypeIndependent
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply9V ~ 14V
Logic Voltage - VIL, VIH4V, 7V
Current - Peak Output (Source, Sink)2A, 2A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)114 V
Rise / Fall Time (Typ)10ns, 10ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case12-VFDFN Exposed Pad
Supplier Device Package12-DFN (4x4)
