EL7457CU

In Stock: 5,879

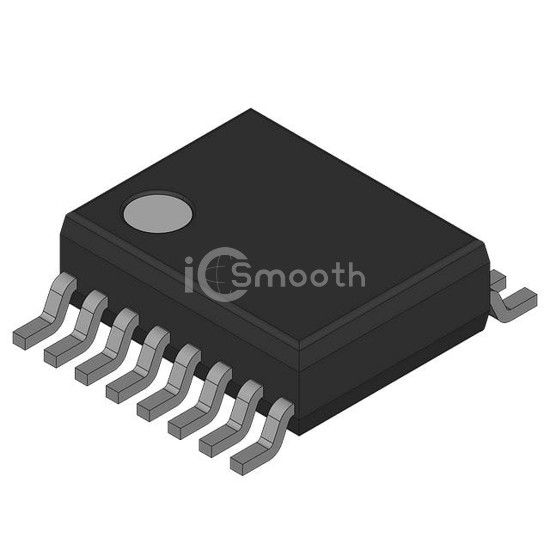

EL7457CU - Intersil - PMIC - Gate Drivers
REF: EL7457CU Intersil
EL7457CU

Intersil

BUFFER/INVERTER MOSFET DRIVER

EL7457CU is a PMIC - Gate Drivers manufactured by Intersil. BUFFER/INVERTER MOSFET DRIVER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 4.5V ~ 18V, package / case 16-SSOP (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 5,879

Specifications

15 parameters
Product StatusObsolete
Driven ConfigurationHigh-Side or Low-Side
Channel TypeIndependent
Number of Drivers4
Gate TypeN-Channel, P-Channel MOSFET
Voltage - Supply4.5V ~ 18V
Logic Voltage - VIL, VIH0.8V, 2V
Current - Peak Output (Source, Sink)2A, 2A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)13.5ns, 13ns
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case16-SSOP (0.154", 3.90mm Width)
Supplier Device Package16-QSOP
